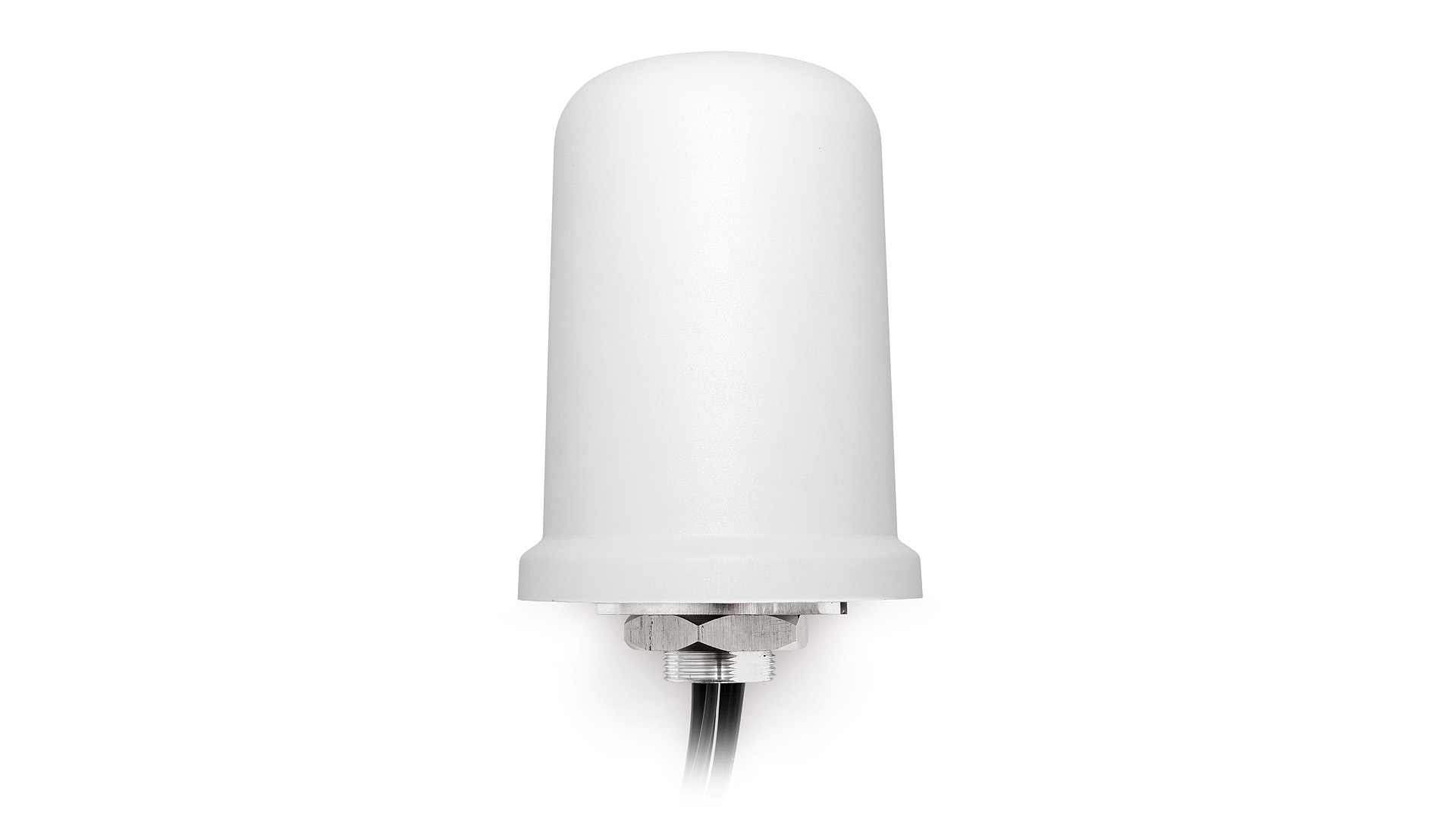

5GNR/4G LTE/3G/2G MIMO Heavy-Duty Antenna

4× 5G NR/4G LTE combo Antenna. Screw Mount, IP67, IP69, IK09 - White, 100cm Lead Length.

Key Features

  • Technologies: 5G, 4G, 3G and 2G
  • Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
  • Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925
  • Peak Gain: (dBi) ~1.3, ~3.4, ~4.7, ~4.0
  • Impedance: (Ohm) 50
  • Polarisation: Linear
  • Radiation Pattern: Omni-Directional
  • Max. Input Power (W) 35

Brand

2J Antennas

Unit of Measure

Each

Part Number

ANT-7183BWc

Sign up to View Price

Optical Solutions Australia is a trade-only distributor. Register your business to unlock full access to pricing and detailed product information, tailored exclusively for our trade customers.

Sign Up Today

Have Questions?

Give us a call, we are happy to help.

1300 130 423 Or send us an email

Features and Benefits

Ultra-Reliable 5GNR MIMO Coverage in a Heavy-Duty Housing

The 5GNR MIMO SMA-Male High-Performance antenna (2J7183Bc) integrates durability and efficiency into a permanent solution.  The 2J7183Bc offers 4x 5GNR-MIMO antennas that deliver powerful worldwide 5GNR/4G LTE MIMO coverage while also covering the 4G LTE, 3G and 2G bands.  This antenna features an easy to install heavy-duty design, making it the #1 most reliable antenna in its category.

Suggested applications include:

– Terminal, Base Stations and 5G Routers
– MIMO Device Connectivity
– Industrial, Commercial and Residential IoT / Smart Home
– Electrical and Environmental Monitoring
– RFID Asset Tracking
– Industrial Automation
– Robotics
-Real-Time Remote Control

Full 5GNR coverage (617-960, 1427-2690, 3300-5000 and 5150-5925 MHz)

Cables 1-4 are designed for 5GNR devices that operate within all 5GNR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X, CAT-Mx, CAT-NBx, NB-IoT, 3G and 2G standards (617 – 5925 MHz). The 5GNR technology introduces millimeter-wave (mmWave) frequency for new generation LTE bands and is the ideal solution for MIMO technology. Each antenna can be used in any preferred combination or MIMO configuration.

All cables are designed with omni-directional radiation pattern and linear polarization for maximum 360-degree signal strength.

All our products have been tested by our expert engineers and measured in our certified CTIA 3D Anechoic Chamber. Please contact our experienced team for assistance with antenna selection and recommendations.

Installation / Environmental

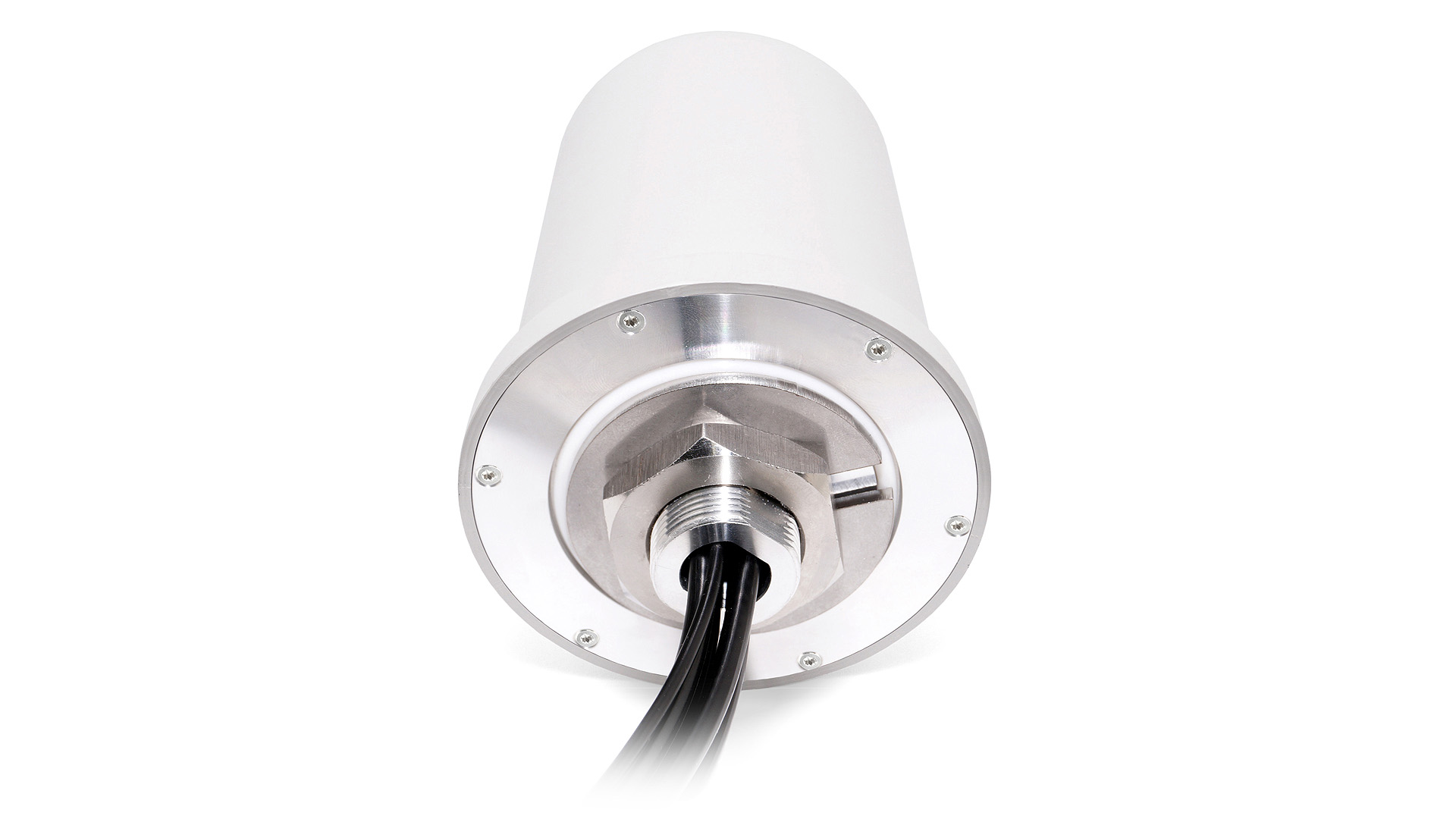

The 2J7183Bc is protected with a robust and heavy-duty housing made with high-quality acrylonitrile styrene acrylate (ASA) UV stable material, known for its thermal resistant properties, and an Aluminum Alloy base for maximum durability. Ground plane independence and screw mount technology allow for solidly locking the antenna on top of its mounting location making its installation easy and reliable.  It comes with standard SMA-Male connector and 300 cm long LL195 Standard cable, a popular choice for in high-frequency applications up to 6 GHz. Cables and connectors can be customized to specific requirements. The IP67 and IP69 ingress ratings provide this compact antenna with maximum protection against dust and water penetration, while the IK09 rating adds an extra level of anti-vandal security, with high impact resistance.
