Features and Benefits

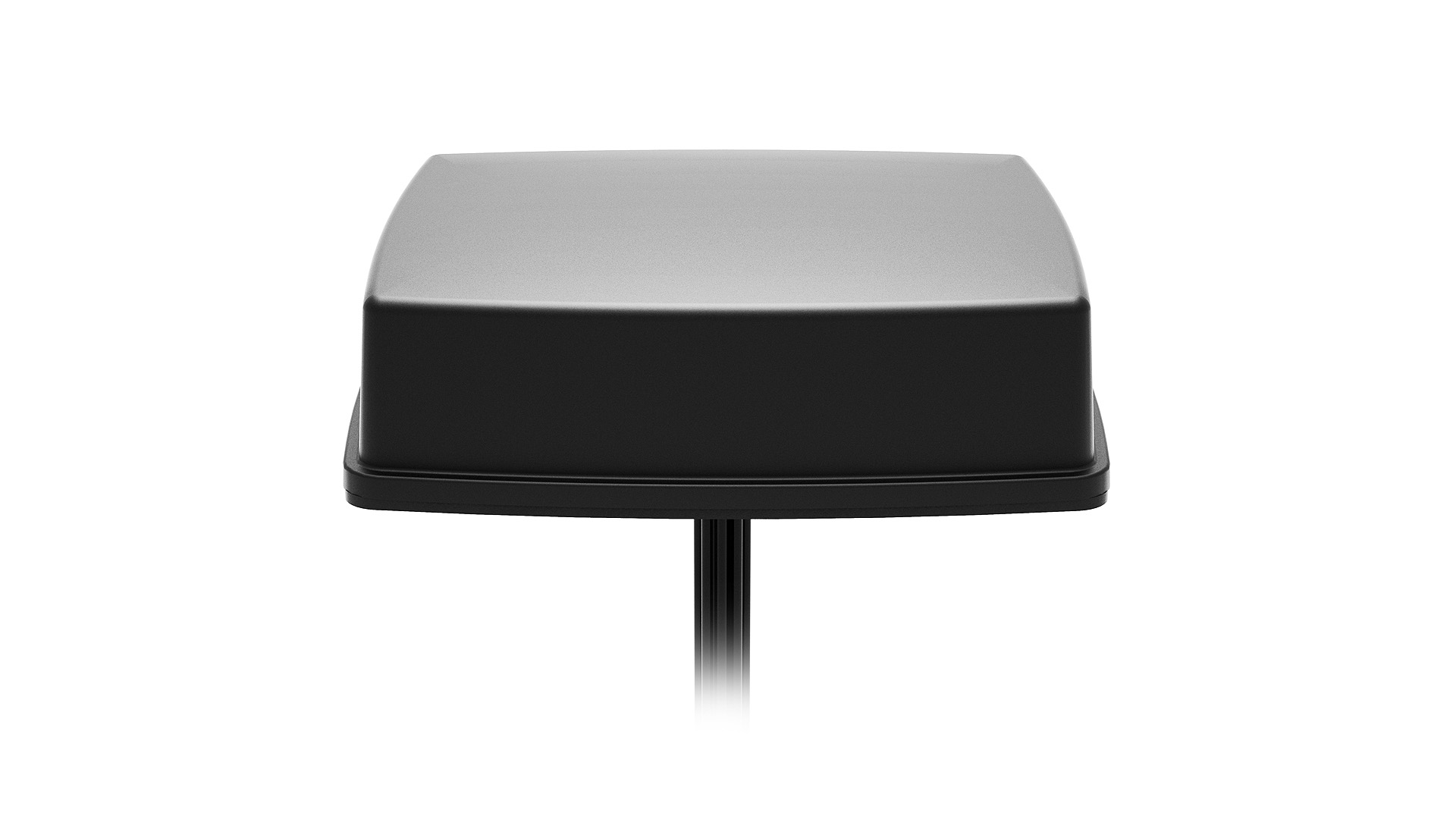

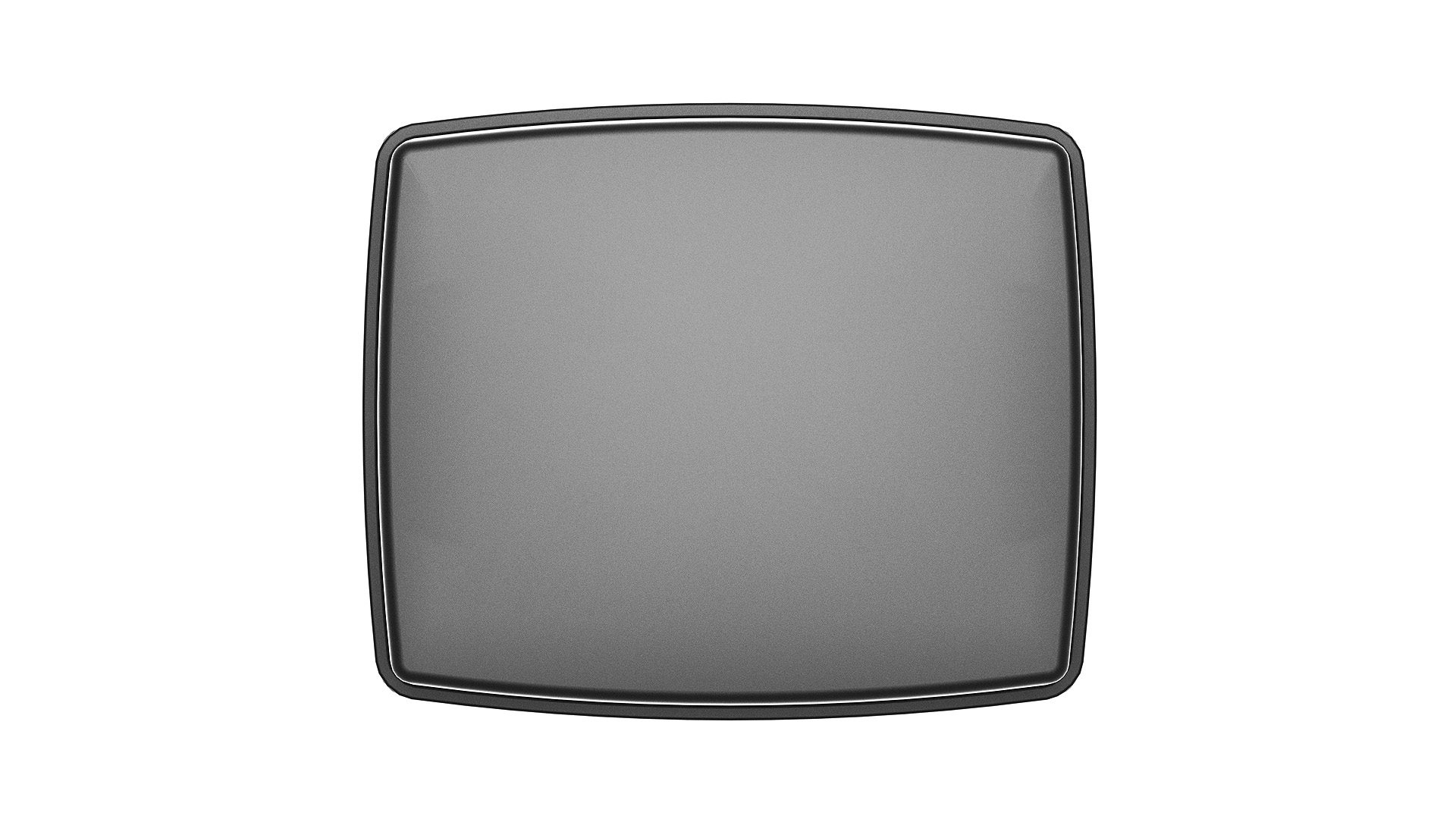

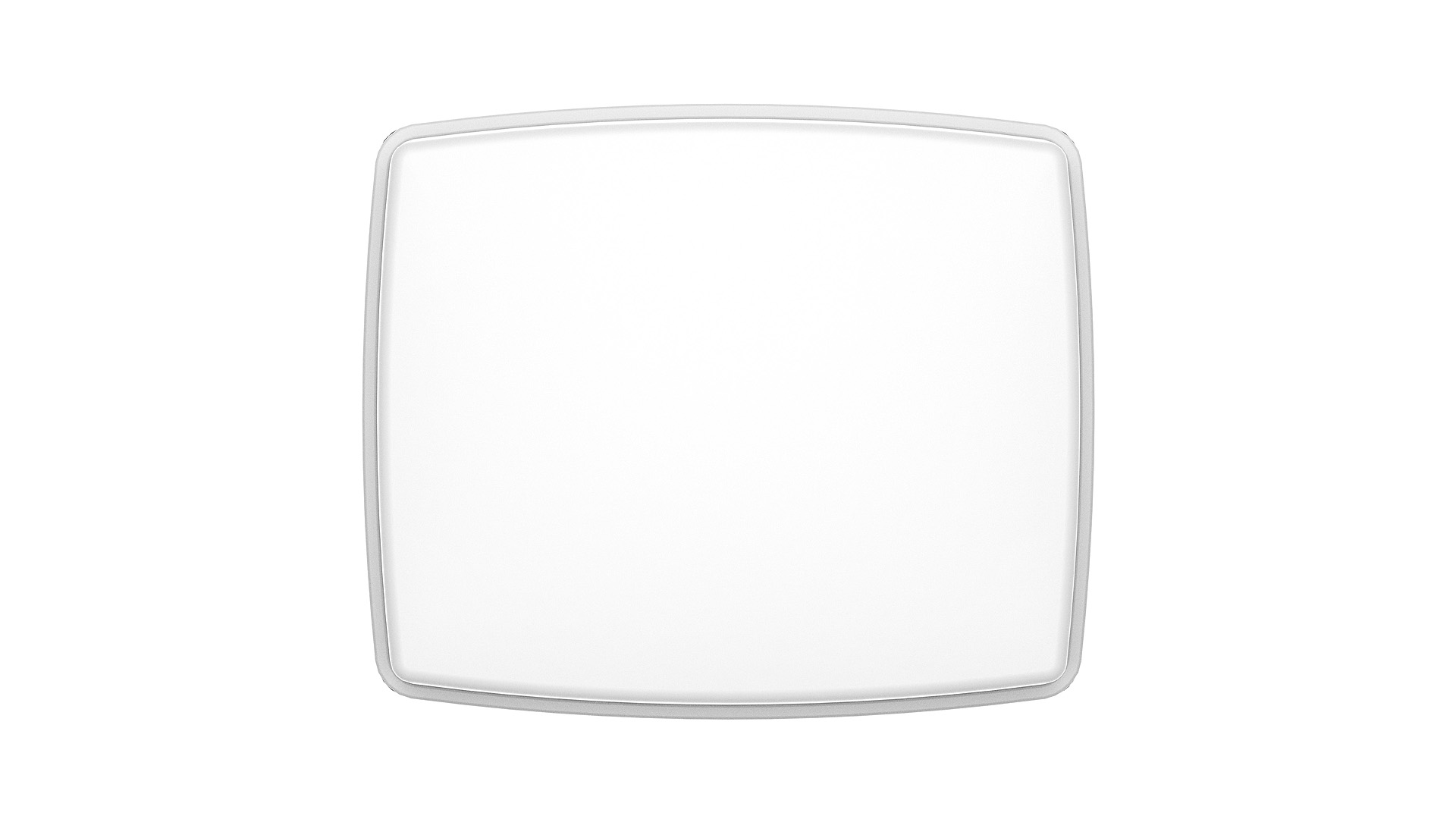

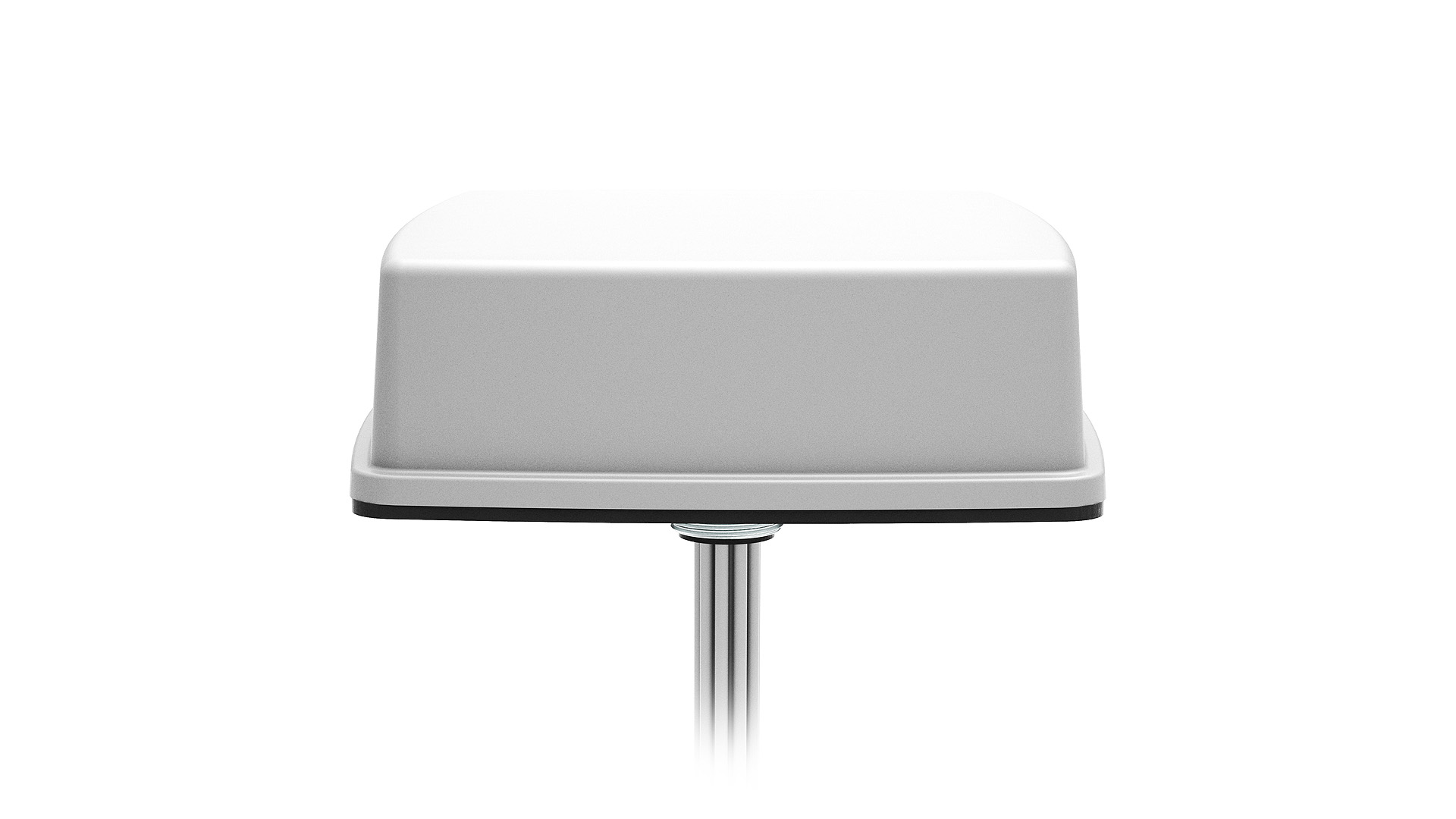

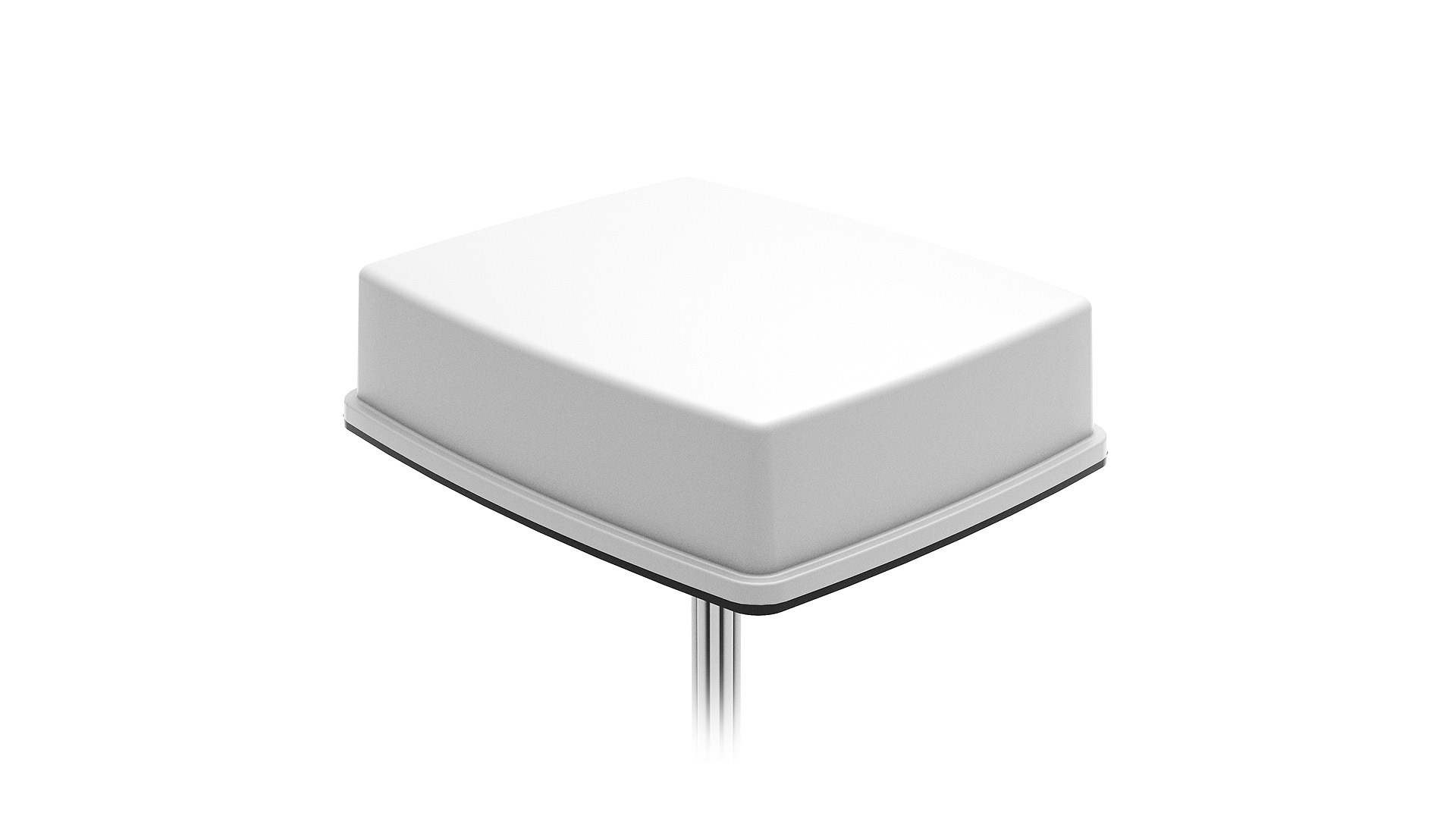

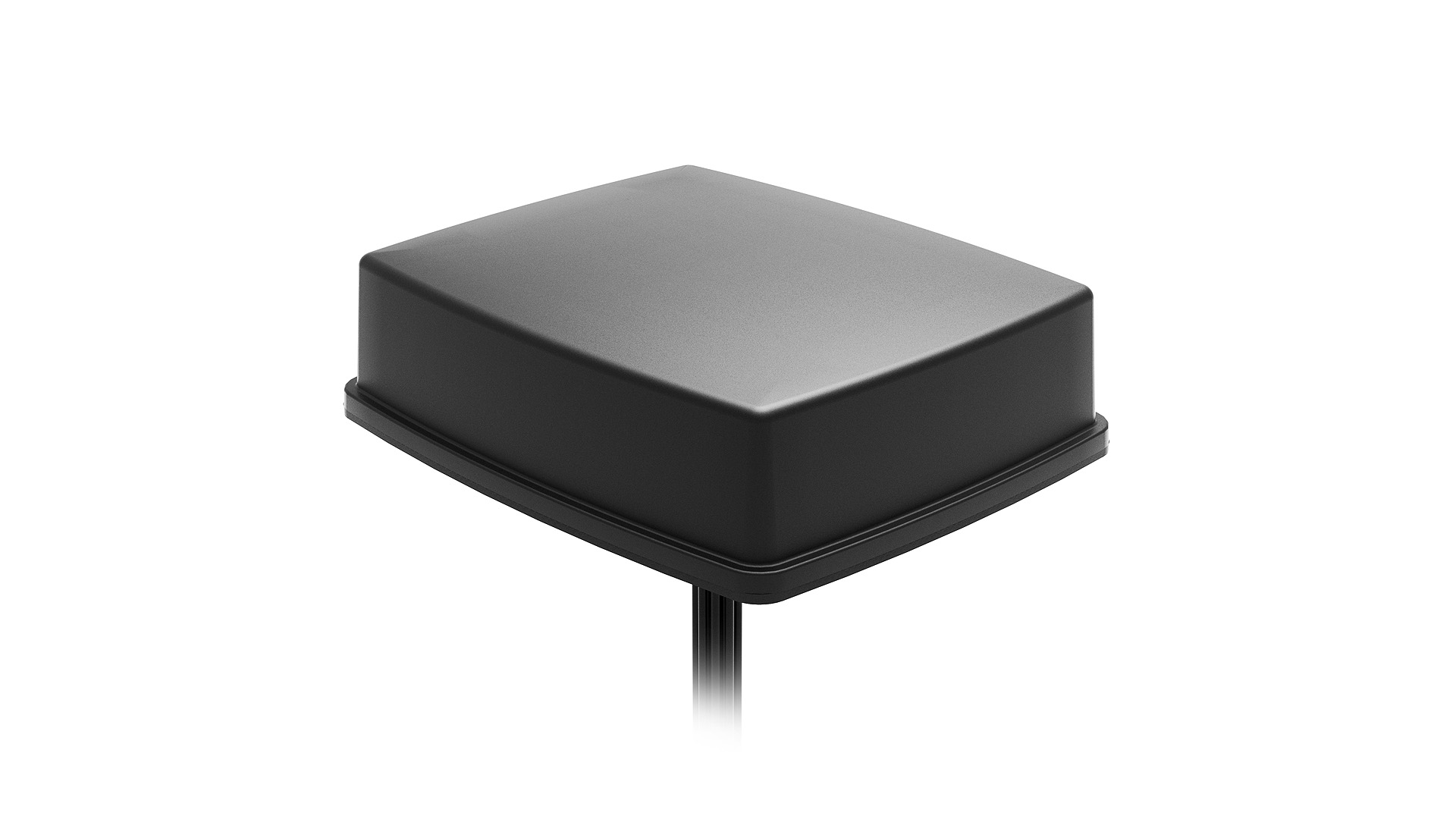

The 2J6B83BC 4-in-1 roof-mounted antenna is engineered to deliver reliable, high-performance connectivity across 5GNR, 4G LTE and legacy networks. With ultra-wideband coverage and an advanced MIMO design, it ensures consistent signal strength in demanding mobile and remote environments. Its rugged, low-profile construction and flexible mounting options make it a dependable, future-ready solution for transport, industrial and IoT applications.
Specifications
Antenna and electrical specifications
Connection 1
5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
| Technologies | 5G, 4G, 3G and 2G |
|---|---|
| Standards | 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G |
| Frequency | 617-960, 1427-2690, 3300-5000, 5150-5925 |
| Return Loss (dB) | ~-14.2, ~-15.4, ~-18.3, ~-9.2 |
| VSWR | ~1.6:1, ~1.6:1, ~1.3:1, ~2.1:1 |
| Efficiency (%) | ~40.0, ~45.7, ~44.2, ~36.8 |
| Peak Gain (dBi) | ~3.0, ~5.0, ~4.6, ~5.0 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
| Max. Input Power (W) | 25 |
Connection 2
5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
| Technologies | 5G, 4G, 3G and 2G |
|---|---|
| Standards | 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G |
| Frequency | 617-960, 1427-2690, 3300-5000, 5150-5925 |
| Return Loss (dB) | ~-12.8, ~-15.3, ~-18.5, ~-10.8 |
| VSWR | ~1.9:1, ~1.6:1, ~1.4:1, ~1.9:1 |
| Efficiency (%) | ~34.1, ~48.2, ~43.7, ~37.8 |
| Peak Gain (dBi) | ~1.1, ~4.8, ~5.1, ~5.0 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
| Max. Input Power (W) | 25 |
Connection 3:
5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
| Technologies | 5G, 4G, 3G and 2G |
|---|---|
| Standards | 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G |
| Frequency | 617-960, 1427-2690, 3300-5000, 5150-5925 |
| Return Loss (dB) | ~-12.7, ~-14.6, ~-19.7, ~-13.5 |
| VSWR | ~1.9:1, ~1.6:1, ~1.3:1, ~1.6:1 |
| Efficiency (%) | ~36.4, ~45.6, ~41.2, ~38.7 |
| Peak Gain (dBi) | ~3.0, ~4.9, ~4.5, ~4.8 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
| Max. Input Power (W) | 25 |
Connection 4:
5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
| Technologies | 5G, 4G, 3G and 2G |
|---|---|
| Standards | 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G |
| Frequency | 617-960, 1427-2690, 3300-5000, 5150-5925 |
| Return Loss (dB) | ~-11.8, ~-15.4, ~-20.5, ~-12.8 |
| VSWR | ~1.9:1, ~1.5:1, ~1.3:1, ~1.6:1 |
| Efficiency (%) | ~35.8, ~55.4, ~51.0, ~44.6 |
| Peak Gain (dBi) | ~2.3, ~5.1, ~5.2, ~5.0 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
| Max. Input Power (W) | 25 |
