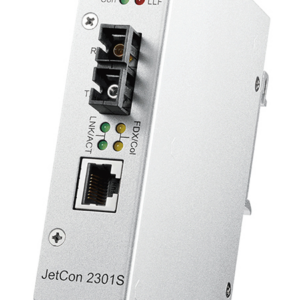

2301S-s: JetCon Industrial Media Converter

2301S-s: JetCon Industrial Media Converter

FE, Fixed Optics, Single Mode

Key Features

  • One port 10/100 TX to 100 FX media converter
  •  Auto Link Loss Forwarding for fault detection
  • Supports Multi-forwarding mode
  • System Fault Relay Output
  • Supports Auto MDI/MDI-X, Auto Negotiation
  • Supports Single-mode 30KM
  • Extreme Low Data Forwarding Latency- 1.6 x 10-6 S
  • Redundant 10~60V DC Power inputs with  polarity protection
  • IP-31 grade protection
  • Supports 1.5KV Hi-Pot isolation protection
  • -40~75℃ operating temperature

Brand

Korenix

Unit of Measure

Each

Part Number

KOR-2301S-s

Brochure/Data Sheet

Download

Sign up to View Price

Optical Solutions Australia is a trade-only distributor. Register your business to unlock full access to pricing and detailed product information, tailored exclusively for our trade customers.

Sign Up Today

Have Questions?

Give us a call, we are happy to help.

1300 130 423 Or send us an email

Features and Benefits

JetCon 2301S is a single port Fast Ethernet to Fiber media converter, compliant with EN61000-6-4, EN50121-1, and EN 50121-4 Railway standards to provide excellent performance under harsh environments featuring intensive vibration/shock and severe electromagnetic interference. Users can benefit from the Single-mode and Multi-mode fiber optic ports of the media converter for providing extended distance transmission of up to 30KM.

Specifications

Technology

Standard

IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3u 100Base-FX
IEEE 802.3x Flow Control and Back Pressure

Performance

Forwarding Technology

Supports 4 types of forwarding mode, store and forward, modify cut-through, pure converter and converter with auto-change mode. This feature is selected by DIP-switch.
Link Lose Forward

Supports Bi-directional Link Loss Forwarding function
Forwarding Latency

Store and Forward: 250 x 10-6S
Modify Cut-Through: 17 x 10-6S
Converter : 1.6 x 10-6S
