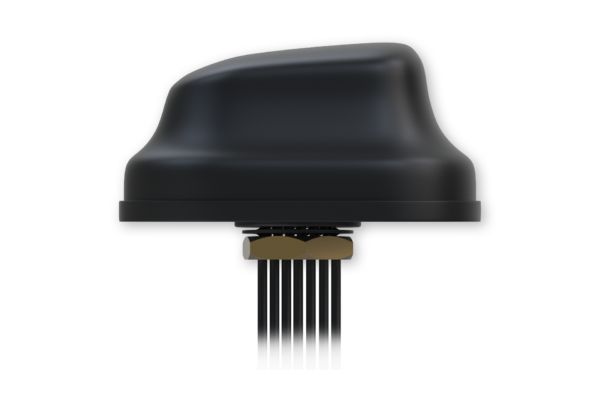

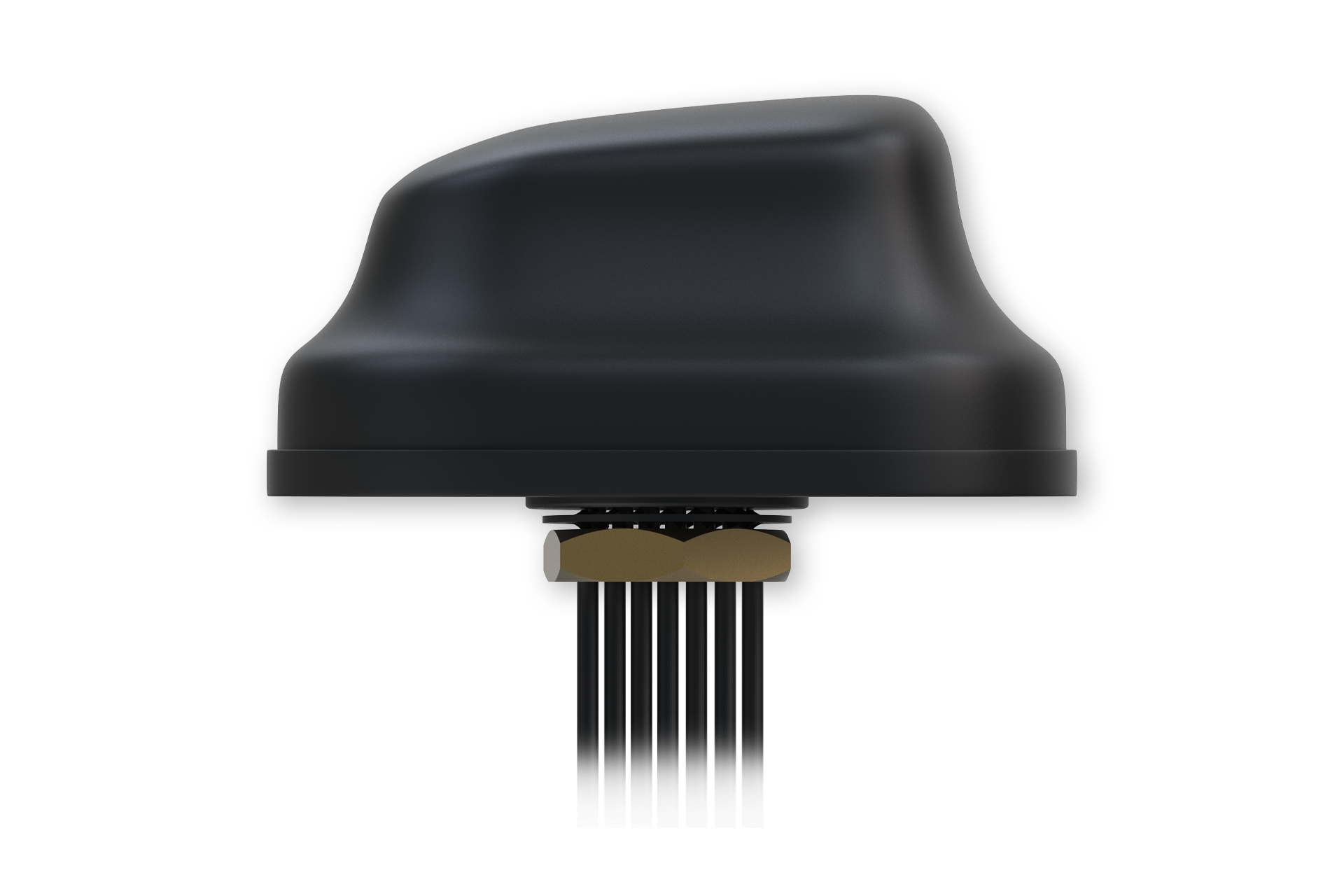

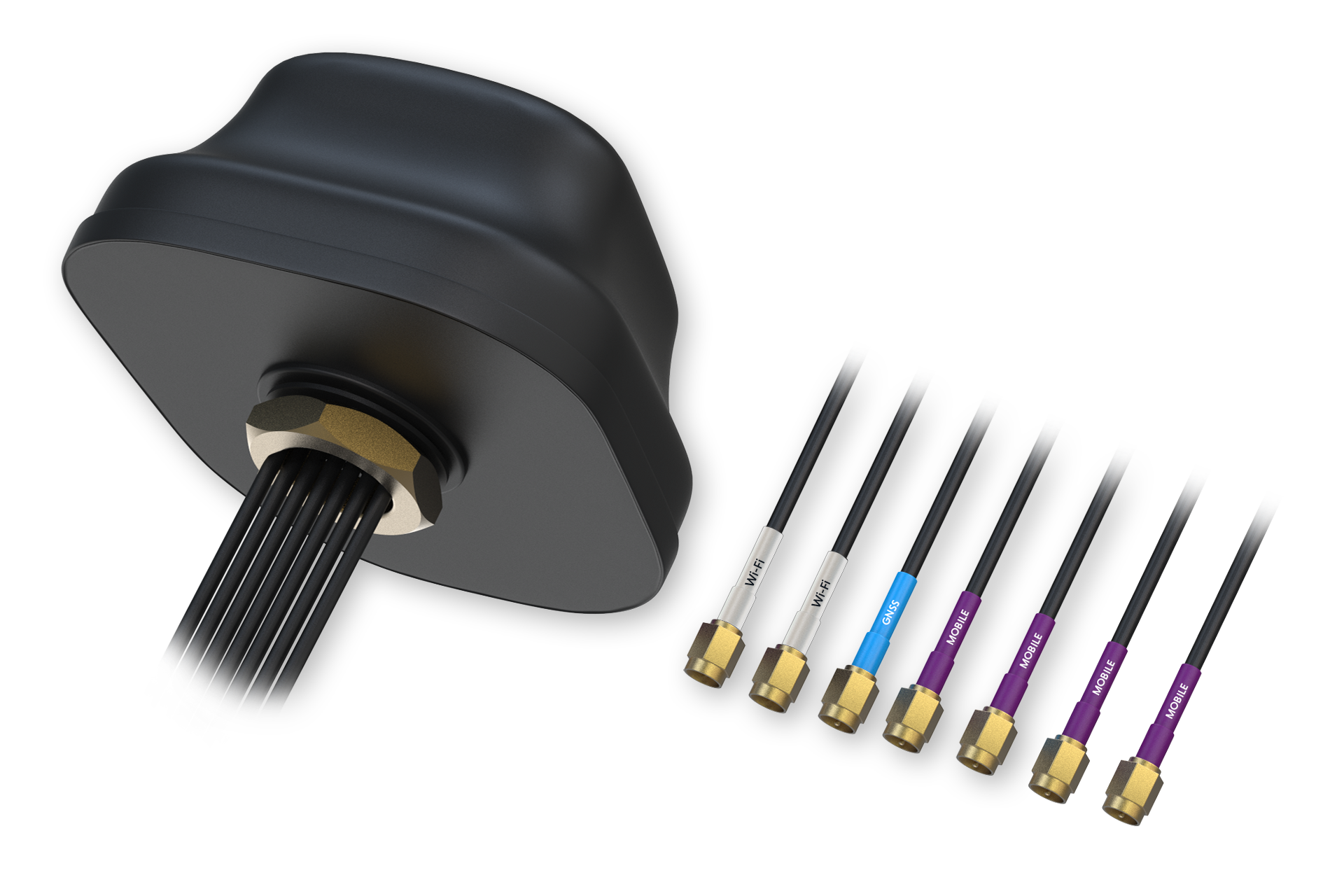

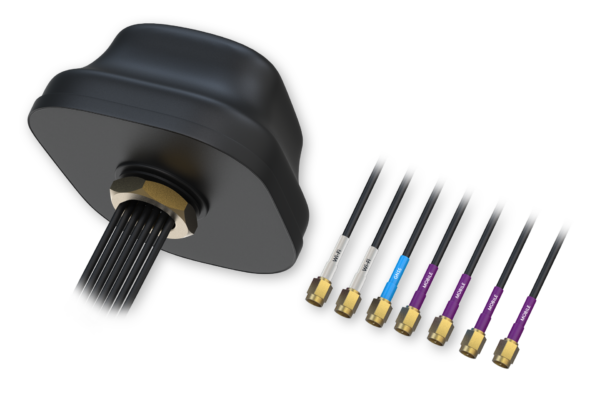

5G COMBO MIMO MOBILE/GNSS/WI-FI ANTENNA
5G COMBO MIMO MOBILE/GNSS/WI-FI ANTENNA - Image 2
5G COMBO MIMO MOBILE/GNSS/WI-FI ANTENNA - Image 3

5G COMBO MIMO MOBILE/GNSS/WI-FI ANTENNA

4x 5G, 2x WIFI, 1x GNSS Antennas in Screw mount chassis, 3m Leads

Key Features

  • IP67 Weather Rated
  • Screw Mount
  • Quad 5G LTE Antenna at 4.0dBi
  • Dual WIFI 5 Antenna
  • GNSS/GPS Antenna
  • 3 metre Lead Length (x7)



Brand

Teltonika

Unit of Measure

Each

Part Number

TKA-PR1KC640

Brochure/Data Sheet

Download

Sign up to View Price

Optical Solutions Australia is a trade-only distributor. Register your business to unlock full access to pricing and detailed product information, tailored exclusively for our trade customers.

Sign Up Today

Have Questions?

Give us a call, we are happy to help.

1300 130 423 Or send us an email

Features and Benefits

5G MOBILE MIMO ANTENNA

  • Frequency Range

    617 – 960 / 1710 – 2690 / 2900 – 4200 MHz

  • Polarization

    Linear

  • Gain

    4.0 dBi

  • V.S.W.R

    ≤3.0

  • Impedance

    50 Ω

  • Connector type and count

    4x SMA Male

GNSS ANTENNA

  • Frequency range

    1164 – 1300 / 1559 – 1610 MHz

  • Polarization

    RHCP

  • Supply voltage

    3 – 12 VDC

  • LNA Gain

    40 ± 2 dB

  • V.S.W.R

    ≤2.0

  • Impedance

    50 Ω

  • Current Consumption

    ≤60 mA

  • Connector type and count

    SMA Male

WIFI MIMO ANTENNA

  • Frequency range

    2400 – 2483.5 / 4900 – 5925 MHz

  • Polarization

    Linear

  • Gain

    4.0 dBi

  • V.S.W.R

    ≤2.5

  • Impedance

    50 Ω

  • Connector type and count

    2x RP SMA Male

MECHANICAL/ENVIRONMENTAL

  • Mounting method

    Screw

  • Radome ingress projection rating

    IP67 (exclude cable outlet)

  • Radome material

    UV-Resistant ABS/PC

  • Weight

    960 ± 30 g

  • Housing dimensions

    189 x 182 x 85 mm

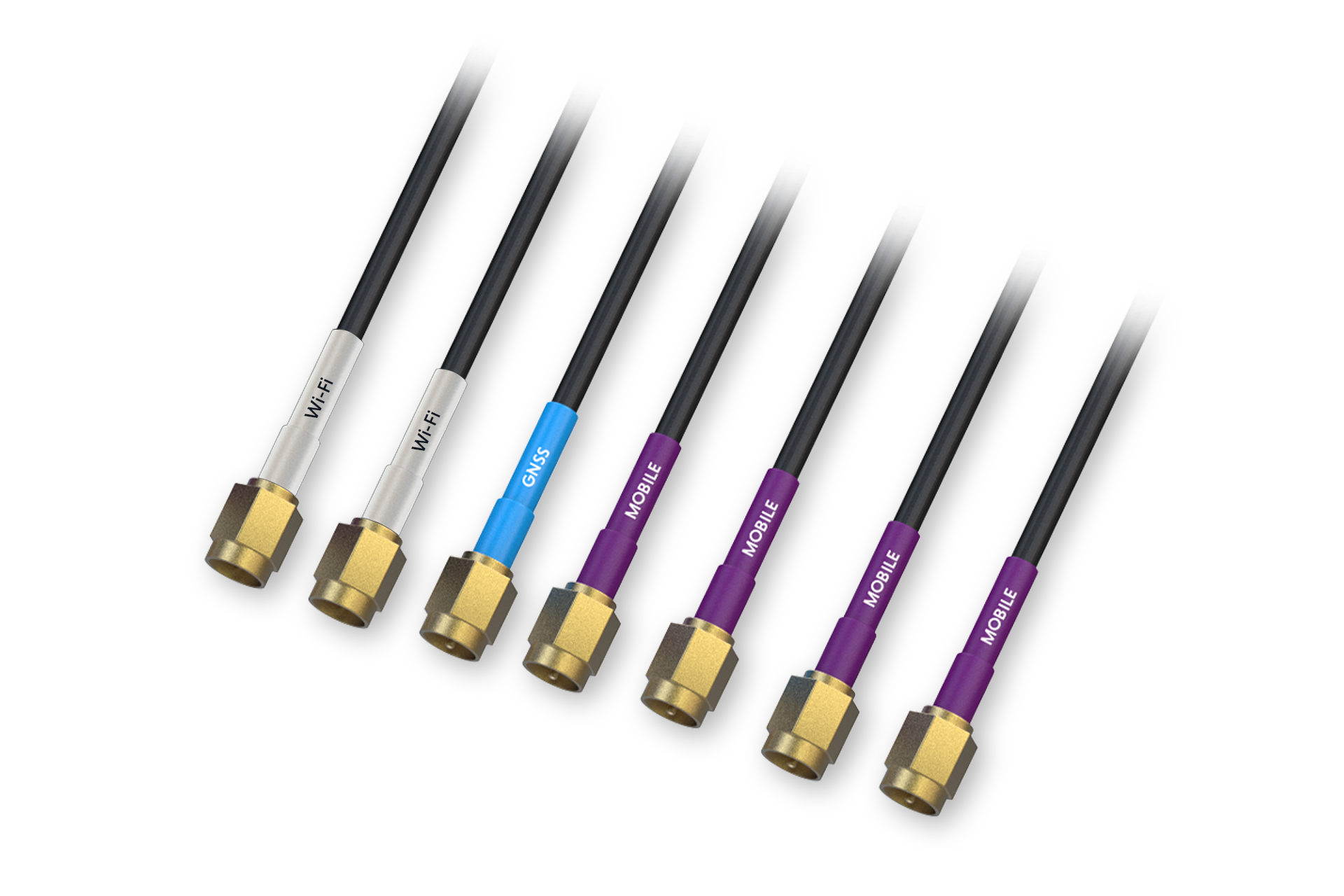

  • Cable

    7 x LMR100, 3000 mm

  • Recomended mounting dimensions

    Hole ø28 mm, panel thickness MAX 8 mm

  • Operating temperature

    -40 °C – +85 °C

  • RoHS Compliant

    ✓
