Features and Benefits

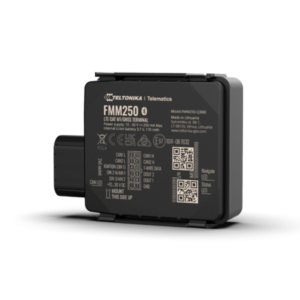

The FMM250 is a water-resistant IP67-rated advanced 4G CAT M 1/GSM/GNSS/BLUETOOTH®LE device. It combines a GPS tracker and CAN adapter into a compact 2-in-1 solution, specifically designed for challenging environments. Its rugged construction and IP67 rating ensure reliable performance in harsh environments, providing protection against water and dust ingress. Featuring an integrated CAN data processor, the FMM250 allows effortless reading of CAN data from a wide range of vehicles, including light vehicles, electric vehicles, trucks, and buses. This enables real-time monitoring of essential vehicle parameters such as fuel level, consumption, odometer readings, CAN speed, and pedal position. The device’s advanced software provides extensive functionality, making it suitable for advanced applications such as logistics, delivery services, utility transport, and car sharing. Its water-resistant IP67 rating ensures durable performance in challenging outdoor conditions, making it a reliable choice for demanding applications.
| CAN Data | Fuel Level (Dashboard), Total fuel consumption, Vehicle speed (wheel), Vehicle driven distance, Engine speed (RPM), Accelerator pedal position |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM |
