Features and Benefits
The All-in-One Cloud Connected Tester you can Depend On.

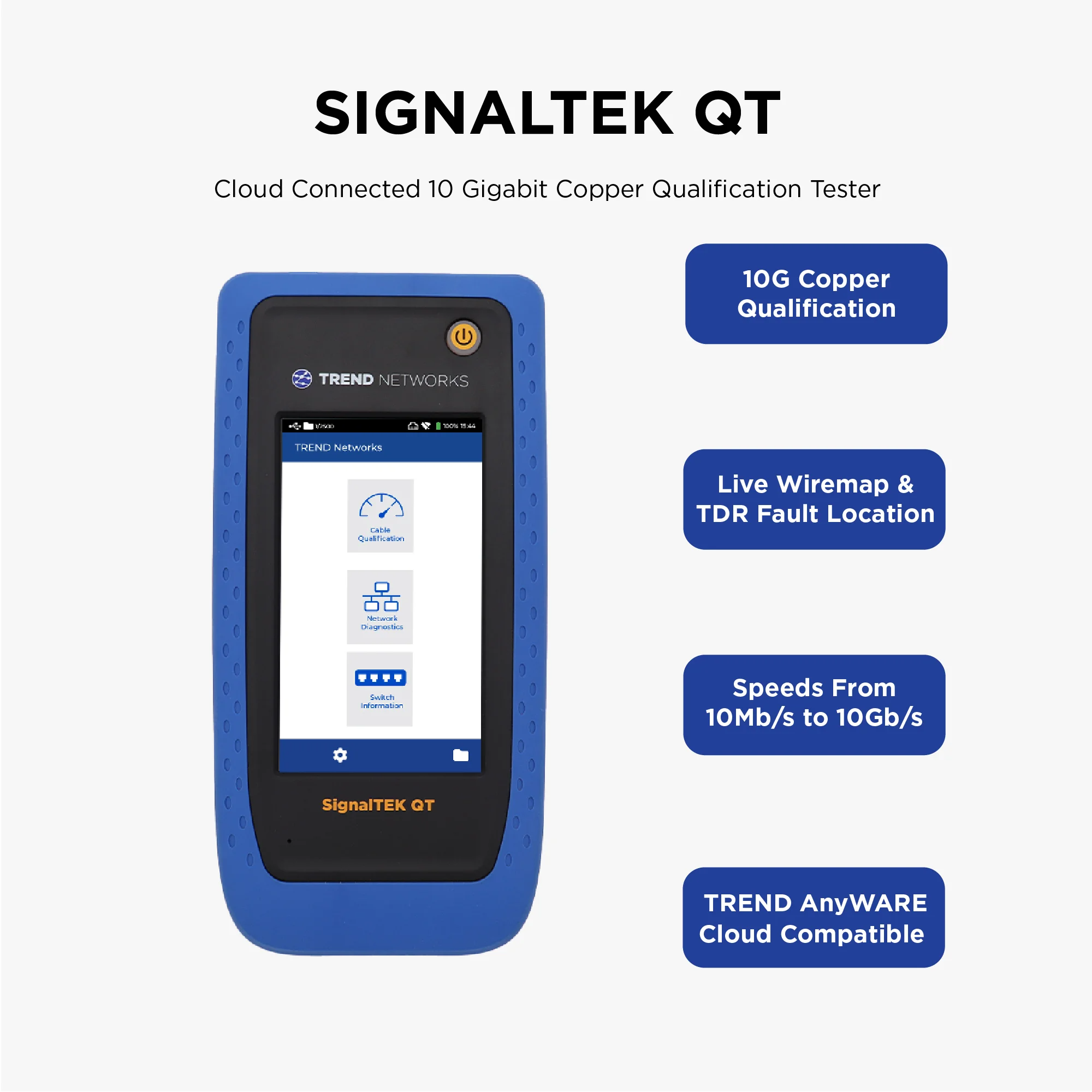

The new SignalTEK QT Series is the ultimate 10G Qualification Tester for Copper, Fibre, and Wi-Fi diagnostics. Powered by TREND AnyWARE Cloud, enabling remote reporting and test result analysis.
As networks evolve to support higher bandwidth, lower latency, and increased device density, 10 Gigabit Ethernet is rapidly becoming the standard for future-proof LAN infrastructures. The transition to fibre optic backbones and the growing demand on Wi-Fi networks require precise, reliable and scalable testing solutions, which is exactly what the SignalTEK QT delivers. The SignalTEK QT Series was designed for today’s Copper, Fibre and Wi-Fi networks.
Key features
Copper Qualification:
Ensure the desired network speed is supported by performing an RF test of the cable to test NEXT, Return Loss and Insertion Loss. SignalTEK QT will display the available performance versus the desired speed with an easy-to-read display. Up to 12 remotes are available for rapid testing. SignalTEK QT allows selection of speeds from 10Mb/s to 10Gb/s including the new 2.5 & 5Gb/s multigig speeds.
Fibre Qualification:
SignalTEK QT Pro qualifies fibre links in accordance with the IEEE 802.3 standard up to 100Gb/s by measuring insertion loss and length of fibre cabling using a convenient loopback test. TREND’s high performance SFP modules offer high accuracy insertion loss measurements and the SignalTEK QT Pro detects the installed SFP module to automatically set Pass/Fail limits.
Wi-Fi Testing:
Analyse Wi-Fi channel strength and identify access points that are on overlapping channels to maximise network performance. Channel utilisation graphs help determine which access points (APs) are overloaded with users. Connect to a network and perform diagnostics with ping, traceroute and device scan tests.
