Features and Benefits
Key Features:

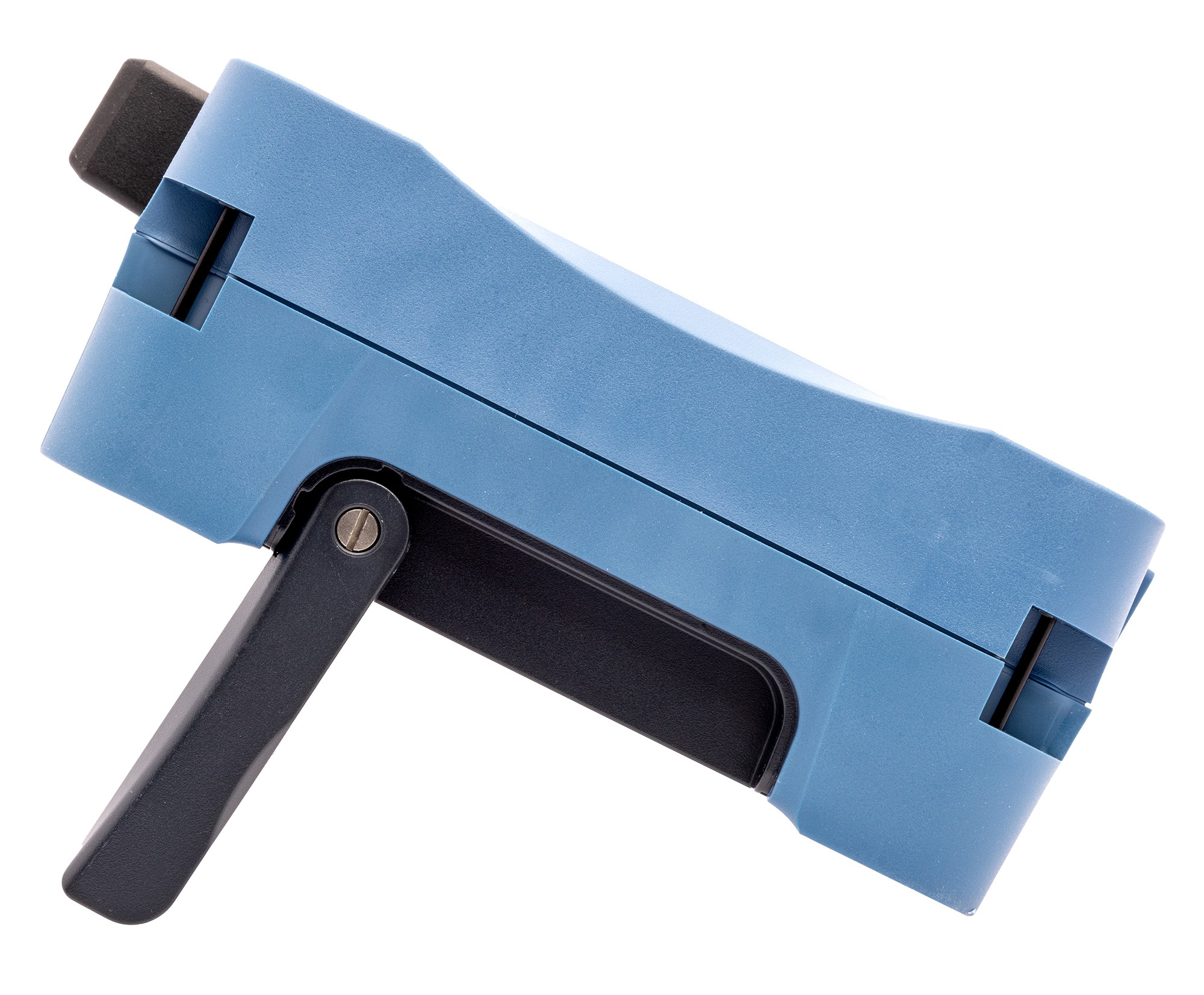

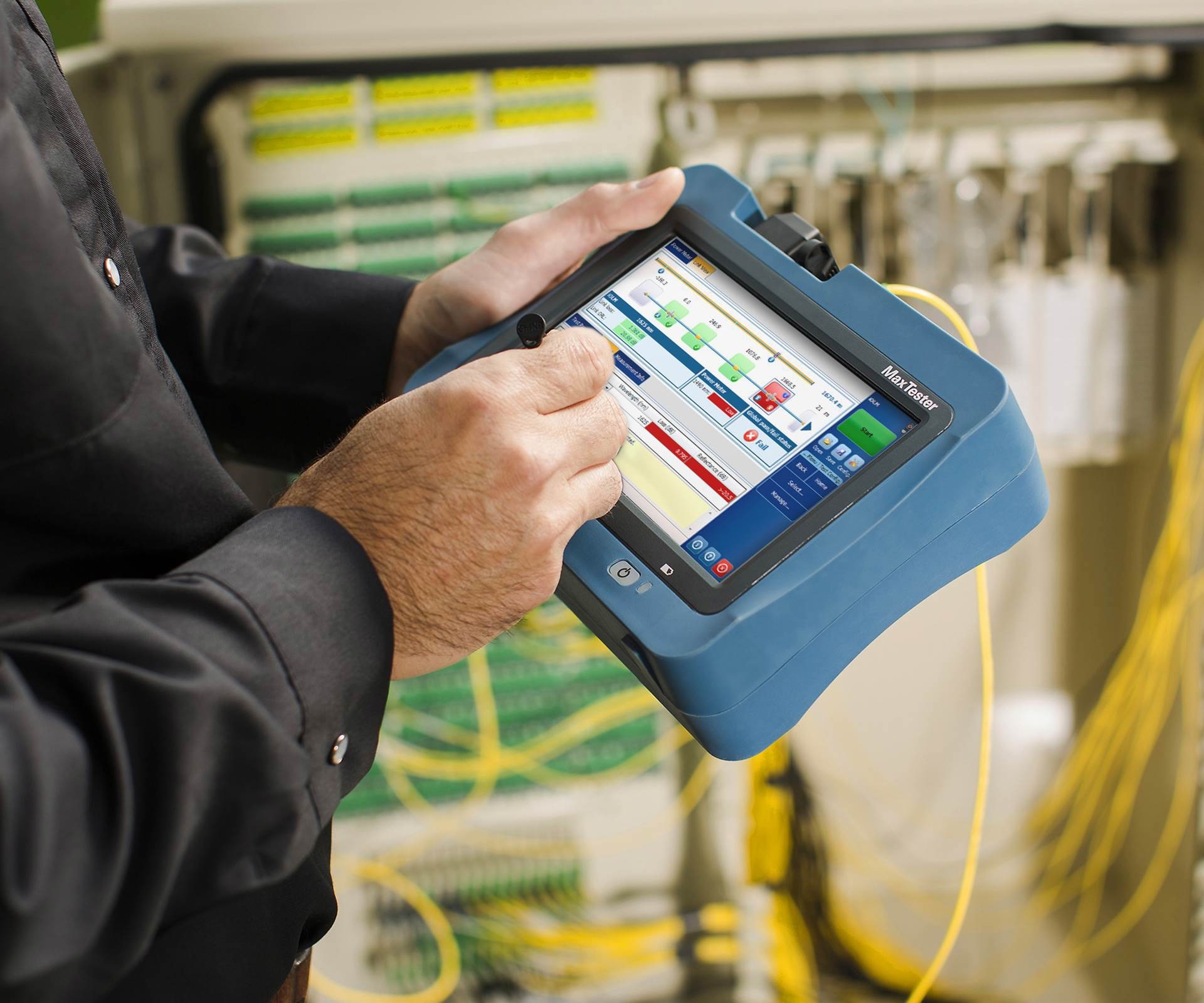

- Rugged, handy, lightweight, tablet-inspired design built for
outside plant 7-inch, outdoor-enhanced touchscreen–the biggest in the handheld industry - 12-hour autonomy
- Dynamic range up to 39 dB for up to 132 km point-to-point (P2P)
- Short dead zones: event dead zone (EDZ) 0.5 m, attenuation dead zone (ADZ) 2.2 m, PON dead zone 30 m
- FTTx in-service testing at 1650 nm with optional in-line GPON/XGS-PON power meter

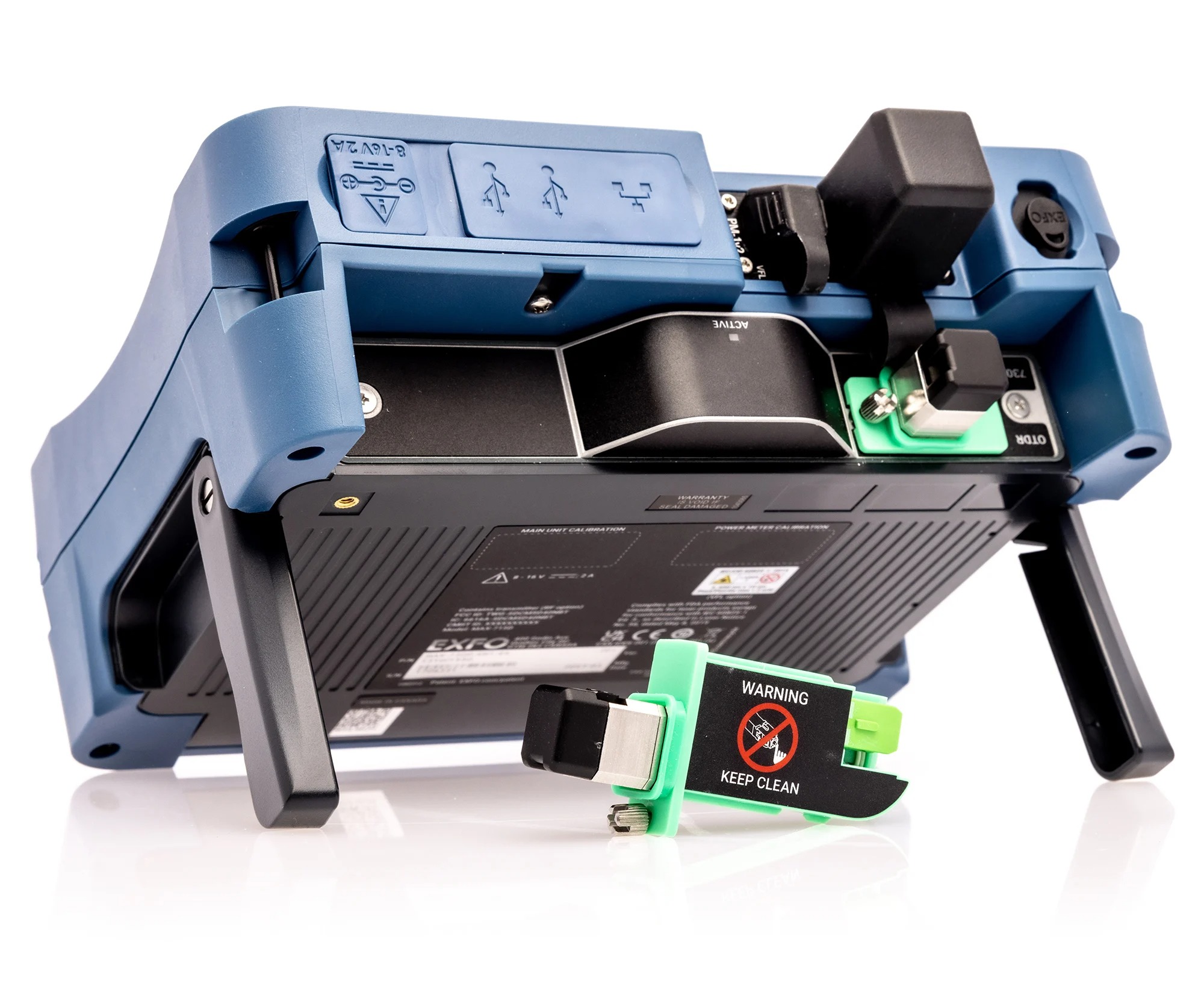

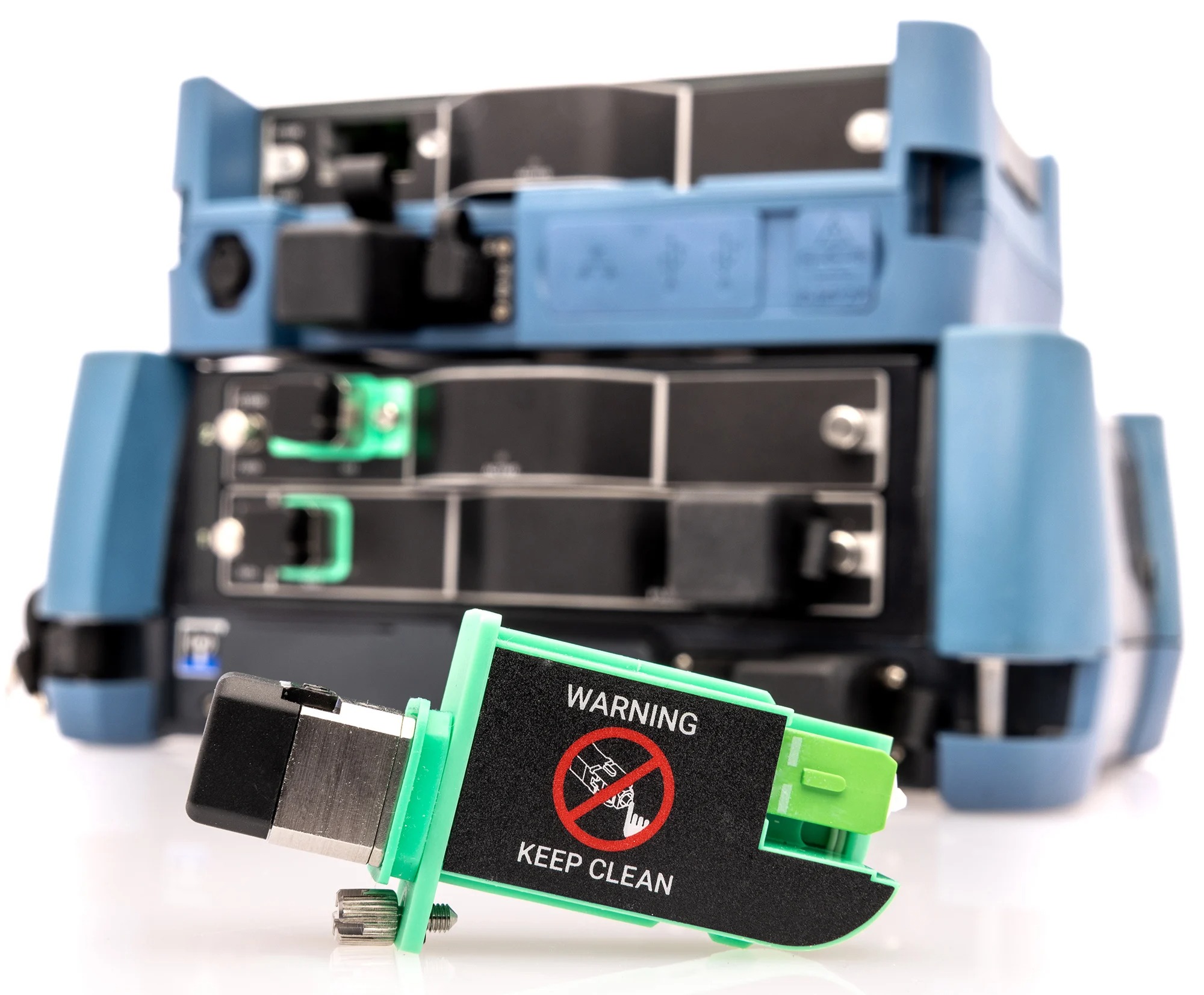

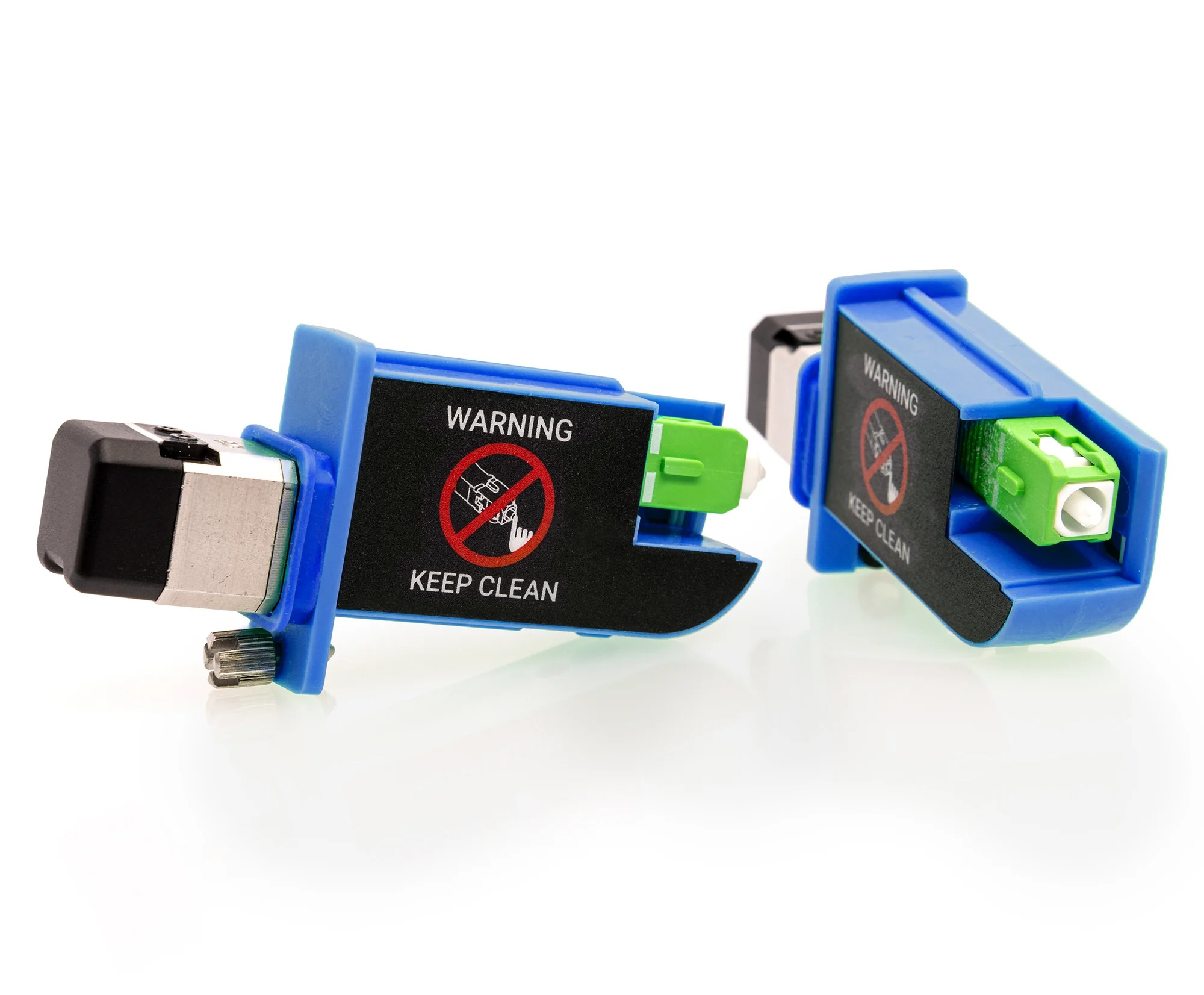

- Swap-Out connector, replaceable whenever necessary for optimal performance over time without undue service cost and downtime
- iOLM-ready: one-touch multiple acquisitions, with clear go/no-go results presented in a straightforward visual format
- Industry-leading onboard PDF reporting and post‑processing, included for all users
Applications:
- FTTx/PON testing through splitters (up to 1×128)
- FTTx service activation: GPON, EPON, XGS-PON, 10GE EPON
- Access network testing (P2P)
- Metro links testing (P2P)
- Live fiber troubleshooting
- Passive optical LAN (POL)
See the data sheet for more detail.
