Features and Benefits
Key Features:

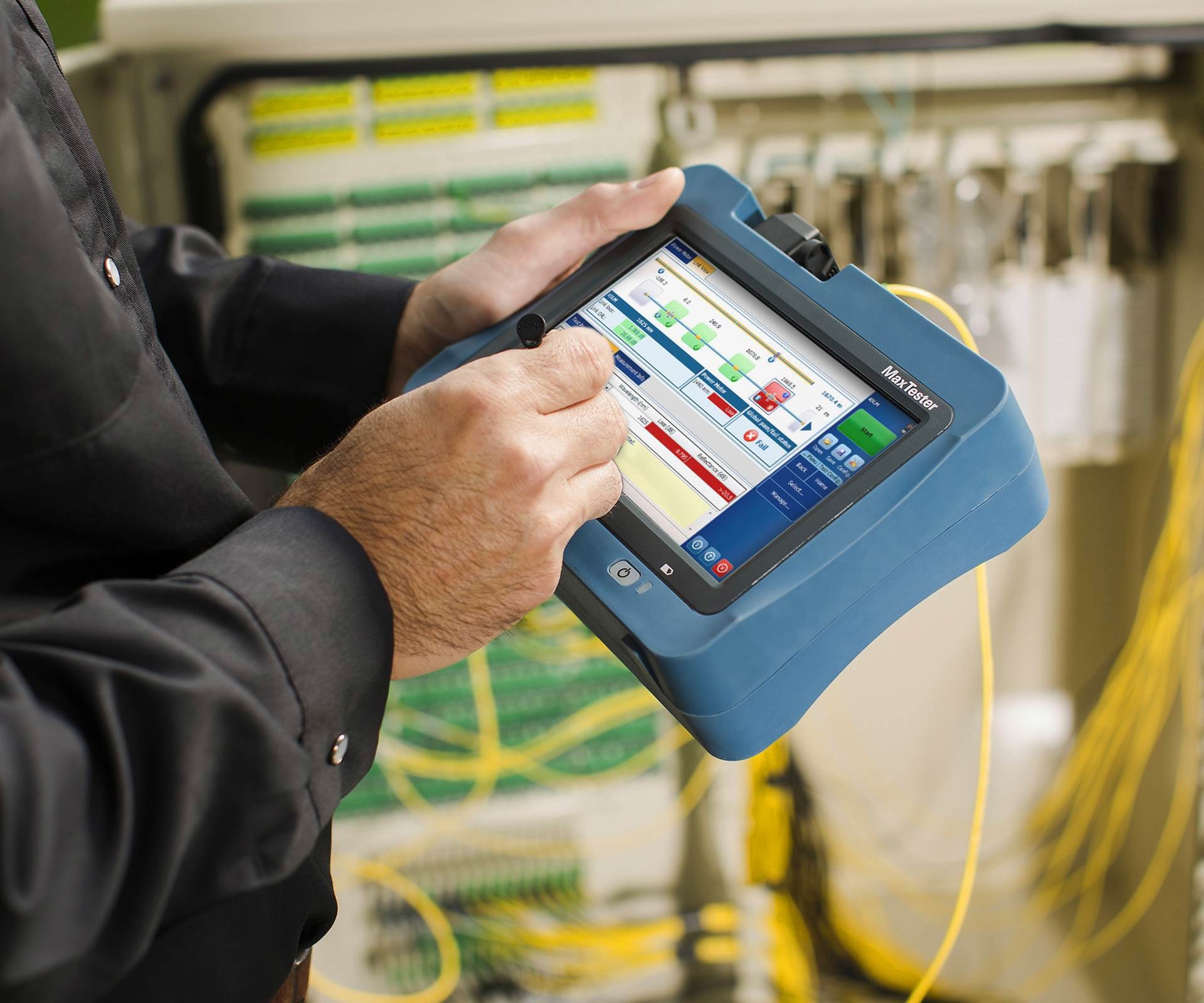

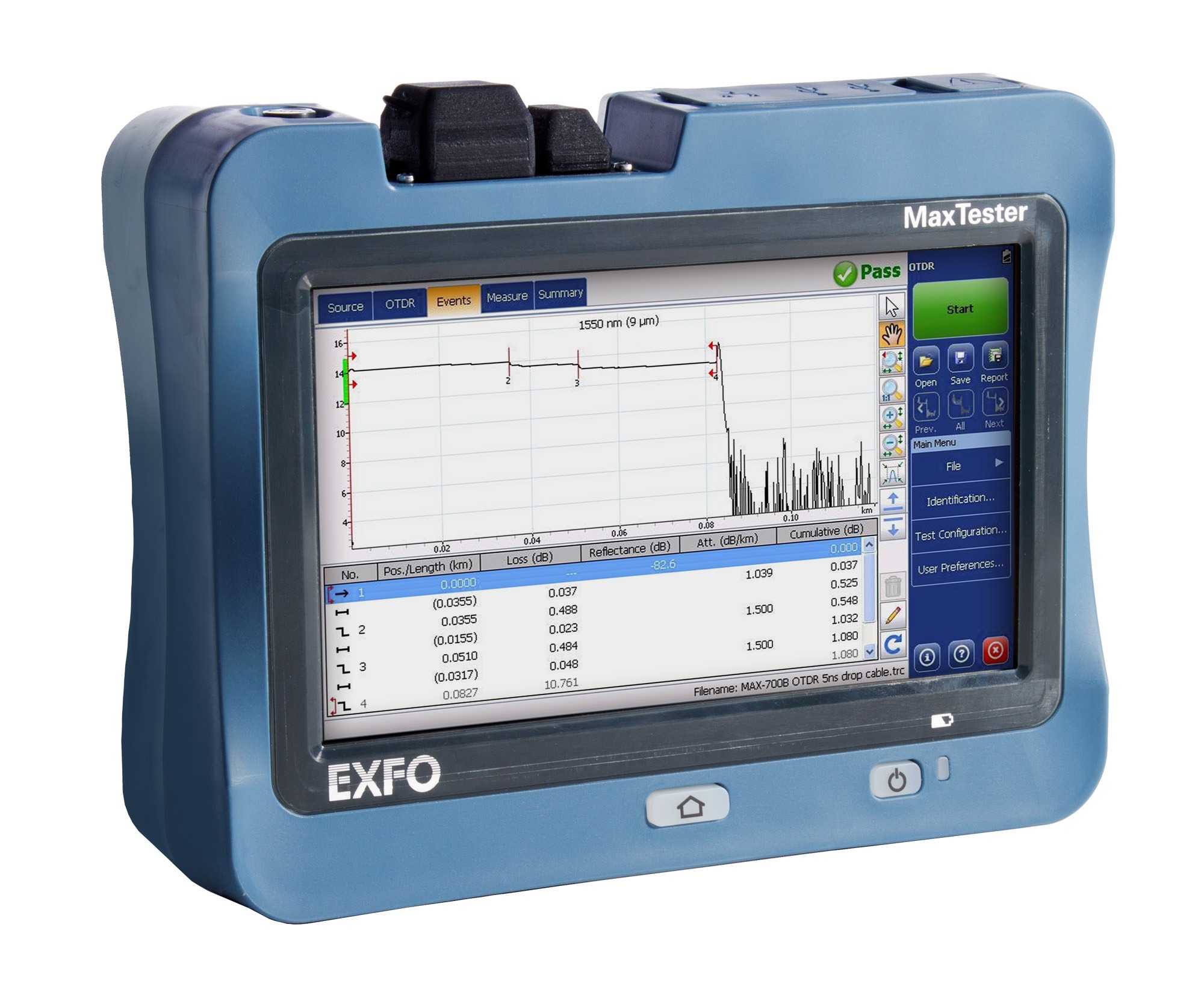

- 7-inch, outdoor-enhanced touchscreen–the biggest in the handheld industry
- 12-hour autonomy
- Dynamic range of up to 36 dB in singlemode (SM) and 29 dB in multimode (MM)
- Event dead zone (EDZ) / Attenuation dead zone (ADZ): 0.7/2.5 m in SM; 0.5/2 m in MM, PON dead zone 35 m in SM
- Live and dark fiber characterization, troubleshooting and activation through the same OTDR port
- FTTx in-service OTDR testing at 1650 nm with optional in‑line GPON/XGS-PON power meter

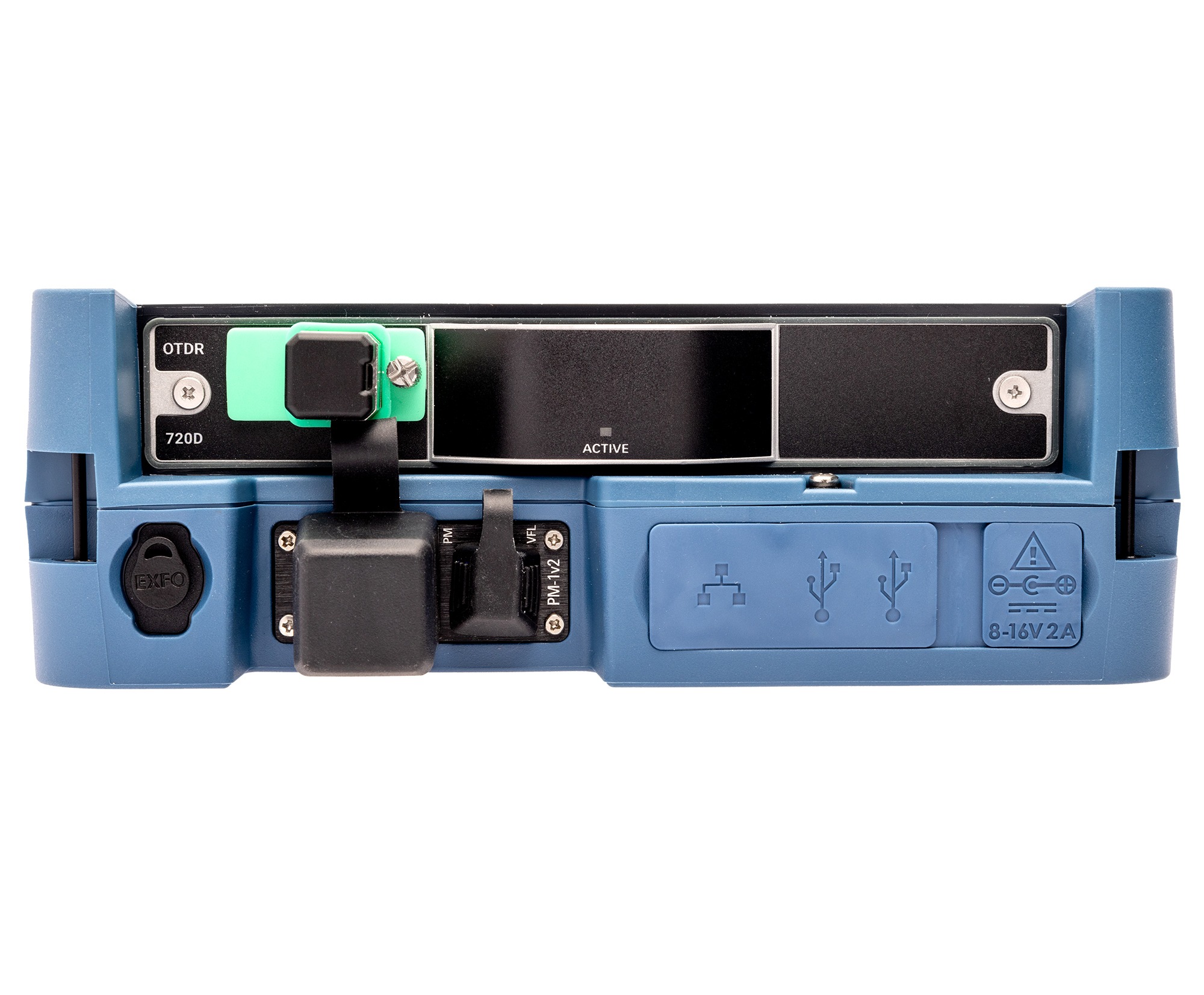

- OTDR, light source and power checker through single port to optimize the fiber handling process

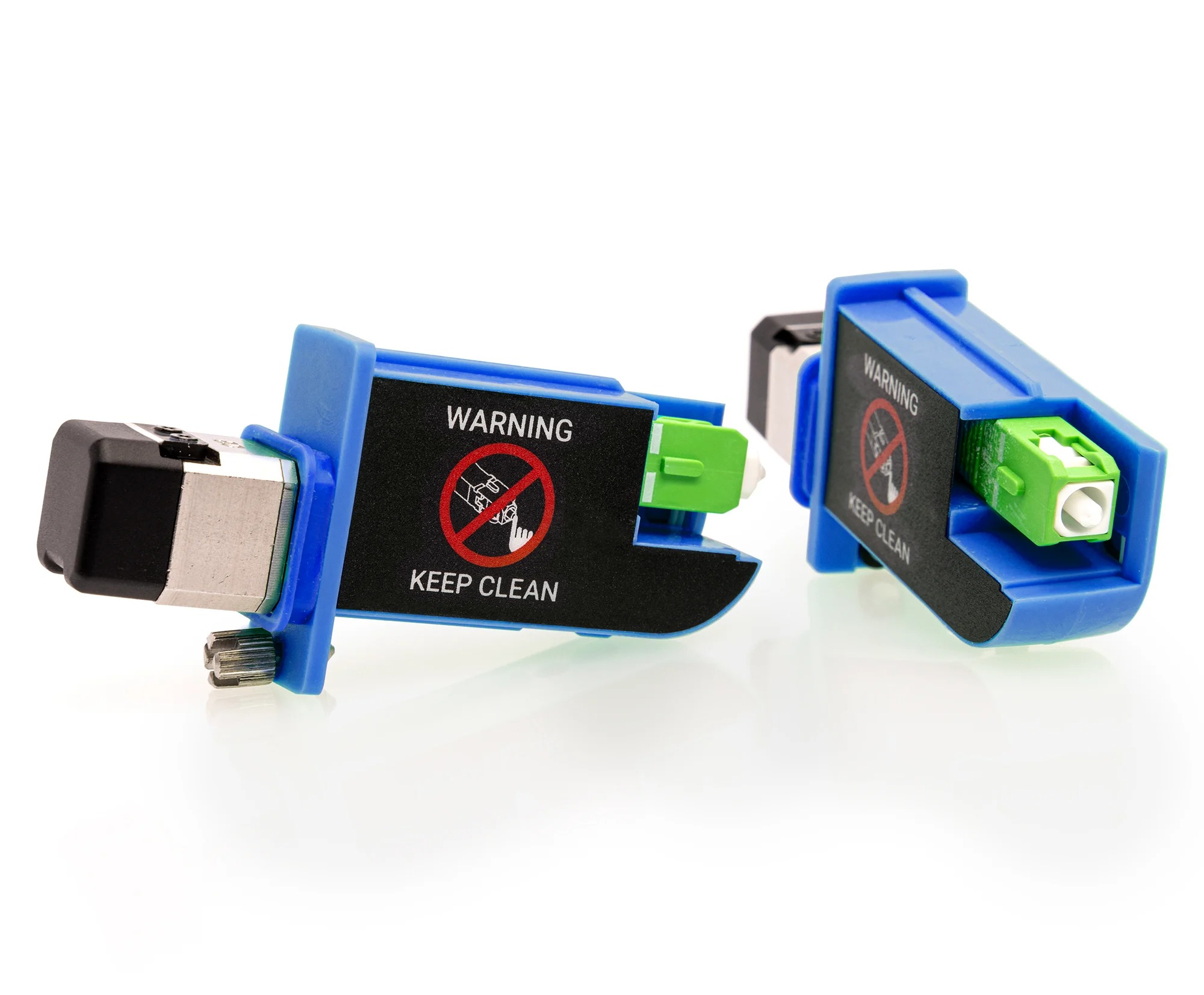

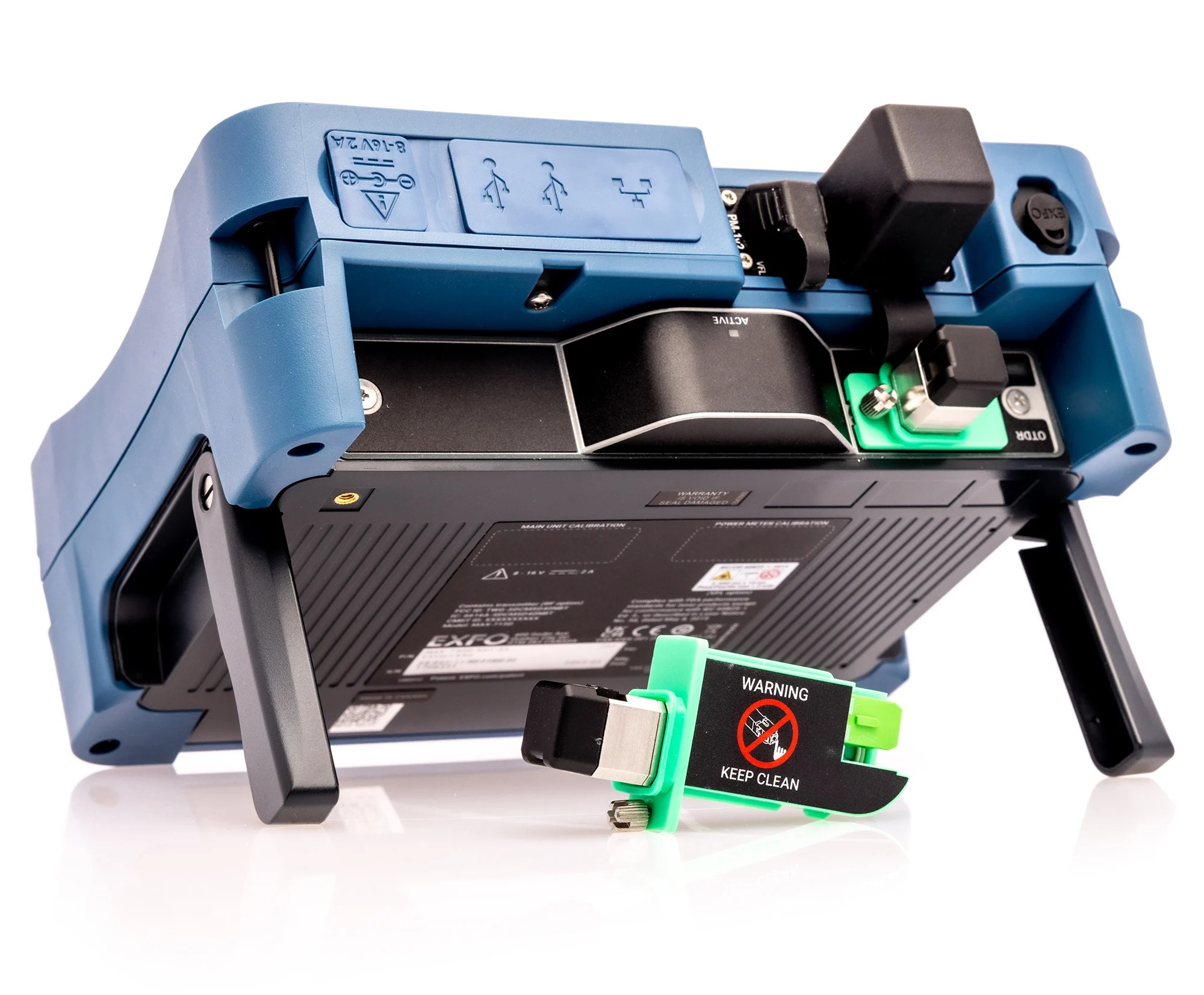

- Swap-Out connector, replaceable whenever necessary for optimal performance over time without undue service cost and downtime
- iOLM-ready: one-touch multiple acquisitions, with clear go/no-go results presented in a straightforward visual format
- SM and quad SM/MM versions available
Applications
- Access network construction and troubleshooting
- FTTx/PON testing through splitters (up to 1×32)
- FTTx service activation: GPON, EPON, XGS-PON, 10GE EPON
- Central office link certification
- Data center and private networks (Tier-2 certification)
- LAN/WAN characterization
- Fronthaul/backhaul (FTTA, FTTT, RRH, DAS and small cells)
See the data sheet for more detail.
