Features and Benefits
Key Features:
- Bluetooth®, Wi-Fi, 2G/3G/4G LTE, GNSS

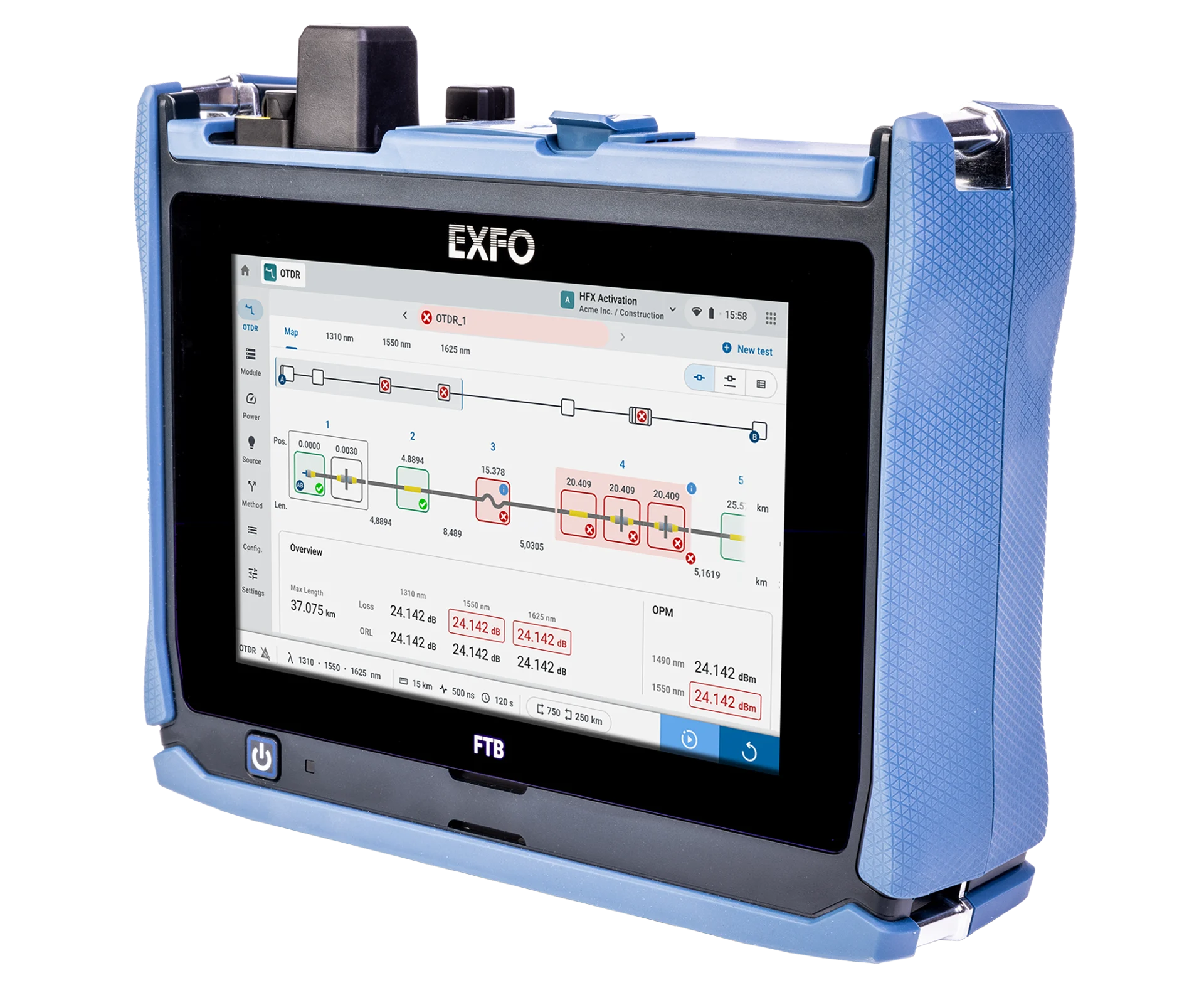

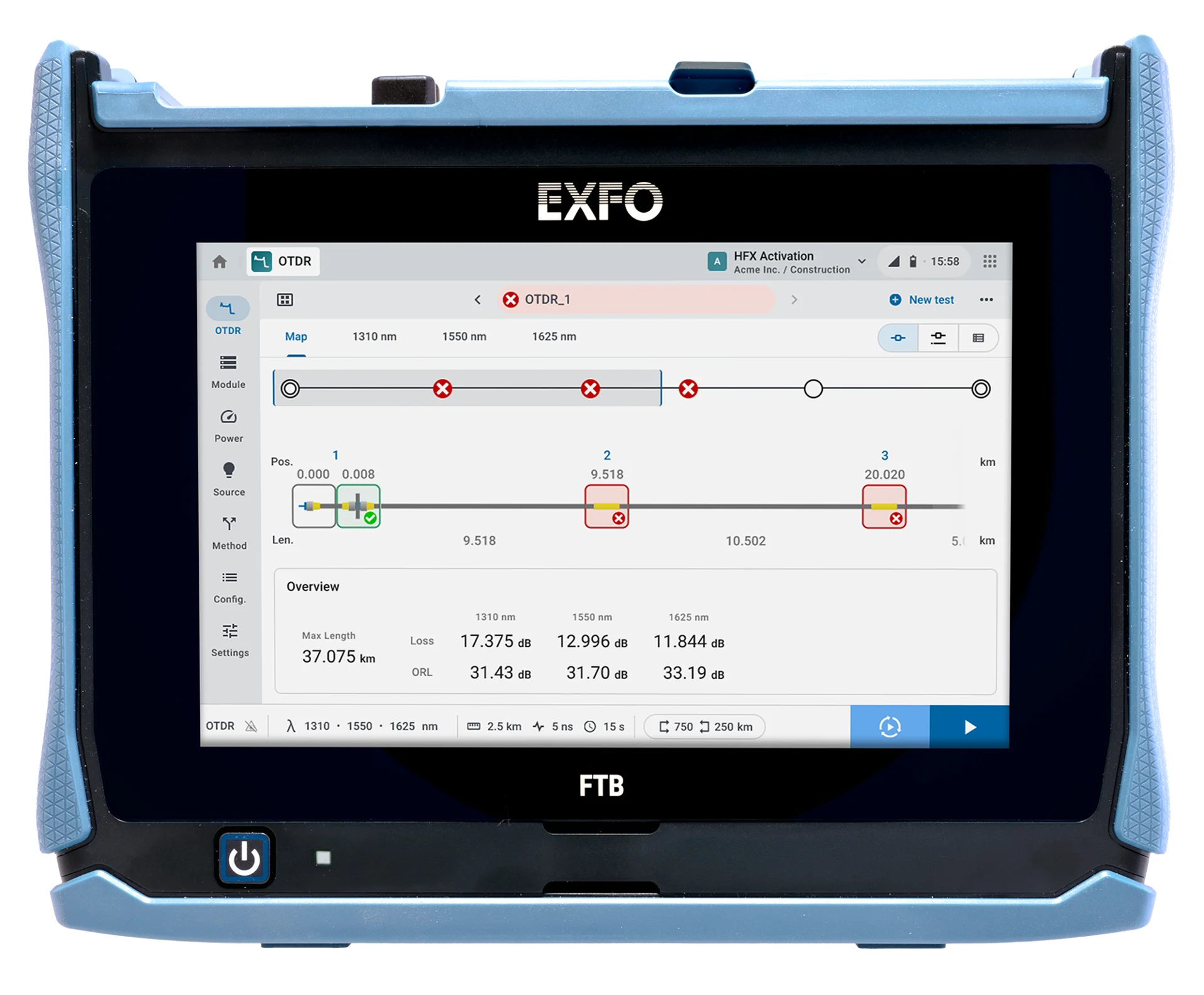

- 8-inch (203-mm) color touchscreen for use in bright sunlit environments
- Up to 10-hour battery autonomy
- Dynamic range of up to 51 dB
- Event dead zone (EDZ) / Attenuation dead zone (ADZ): 0.5/2.0 m
- Up to 256 000 sampling points
- iOLM-ready: one-touch multiple acquisitions, with clear go/no-go results presented in a straightforward visual format
Applications:
- Metro and middle-mile network testing
- Longhaul network testing
- Data center interconnect (DCI) testing
- Manufacturing automation
Optical configurations:
- SM1 = SM OTDR, 1310/1550 nm
SM8 = SM OTDR, 1310/1550 nm and 1650 nm filtered, on the same port
Q2-QUAD = QUAD OTDR, 850/1300 nm and 1310/1550 nm
See the data sheet for more detail.
