Features and Benefits
Key Features:
- Bluetooth®, Wi-Fi, 2G/3G/4G LTE, GNSS
- 8-inch (203-mm) colour touchscreen for use in bright sunlit environments or any environment where you conduct tests
- Up to 10-hour battery autonomy

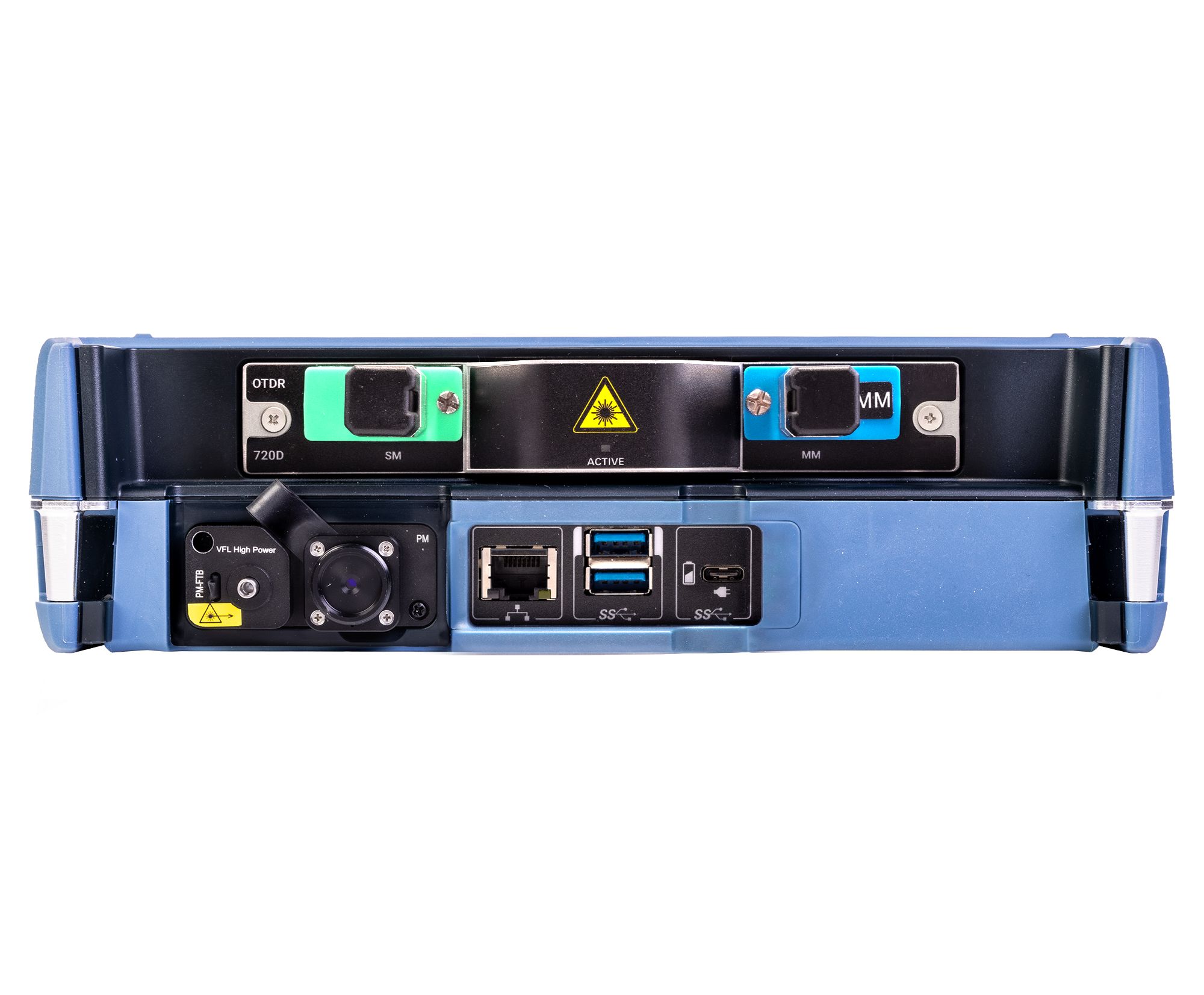

- Live and dark fiber characterization, troubleshooting and activation through the same OTDR port
- Dynamic range of up to 38 dB in singlemode (SM) and 30 dB in multimode (MM)
- Event dead zone (EDZ) / Attenuation dead zone (ADZ): 0.7/2.5 m in SM and MM, PON dead zone 35 m in SM
- FTTx in-service testing at 1650 nm with optional in-line GPON/XGS-PON power meter

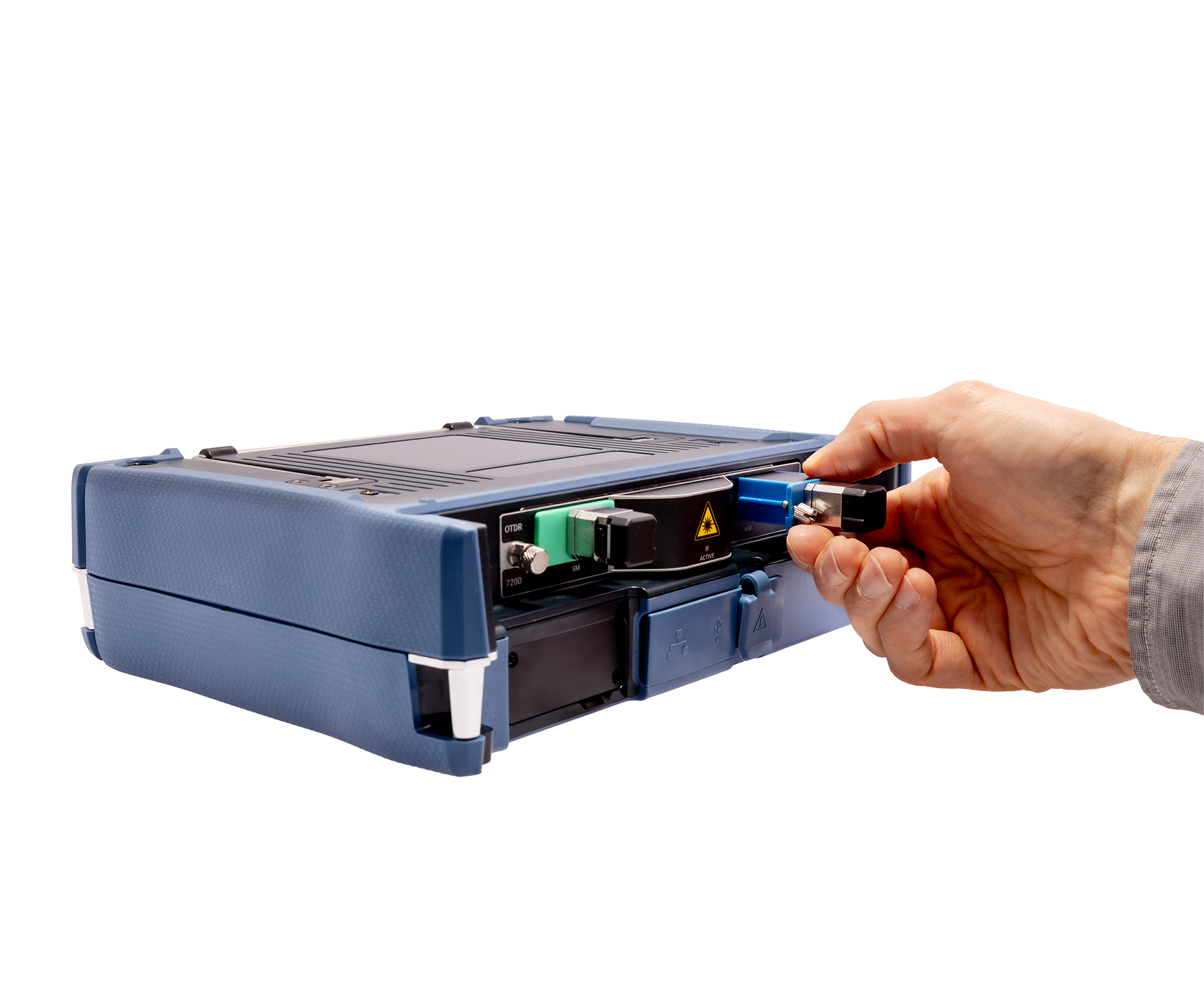

- Swap-Out connector, replaceable whenever necessary for optimal performance over time without undue service cost and downtime
- iOLM-ready: one-touch multiple acquisitions, with clear go/no‑go results presented in a straightforward visual format
- SM and quad SM/MM versions available
Applications:
- Access network construction and troubleshooting
- FTTx/PON testing through splitters (up to 1×32)
- FTTx service activation: GPON, EPON, XGS-PON, 10GE EPON
- Central office link certification
- Data center and private networks (Tier-2 certification)
- LAN/WAN characterization
- Fronthaul/backhaul (FTTA, FTTT, RRH, DAS and small cells)

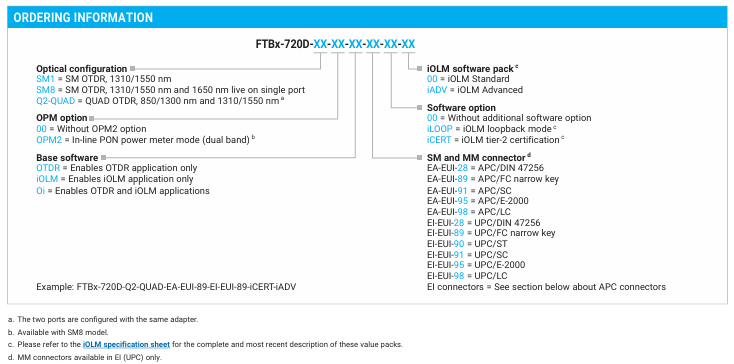

Optical configurations:
- SM1 = SM OTDR, 1310/1550 nm
SM8 = SM OTDR, 1310/1550 nm and 1650 nm filtered, on the same port
Q2-QUAD = QUAD OTDR, 850/1300 nm and 1310/1550 nm
See the data sheet for more detail.
